copper brush aluminum composite panel

Quick Details

Size: customize

Place of Origin: Hunan, China

Brand Name: HUABOND

Model Number: H-A404

Usage: Outdoor

Function: Anti-Static, Antibacterial, Fireproof, Mould-Proof

Surface Treatment: PVDF Coated

Width: 1000mm-2000mm

Panel Thickness: 2mm-6mm

Aluminium Alloy: AA1100, AA3003 (other grade on requirement)

Coating: PE / PVDF/ FEVE

Core: LDPE / Fireproof

Certificate: CE, ISO9001, VOC

Standard: EN13501-1 / ASTM E84

Color: Copper

Length: 5800mm in maximum

Supply Ability: 250000 Square Meter/ Per Year

Packaging Details strong Wood-Metal cases or Bulk/Nude packing

Port Shanghai port

The copper composite panel (herewith call: CCP), the surface with pure copper feature, noble temperament, no coating. Excellent weather resistance and easy to process. Lower cost than solid cooper panels.

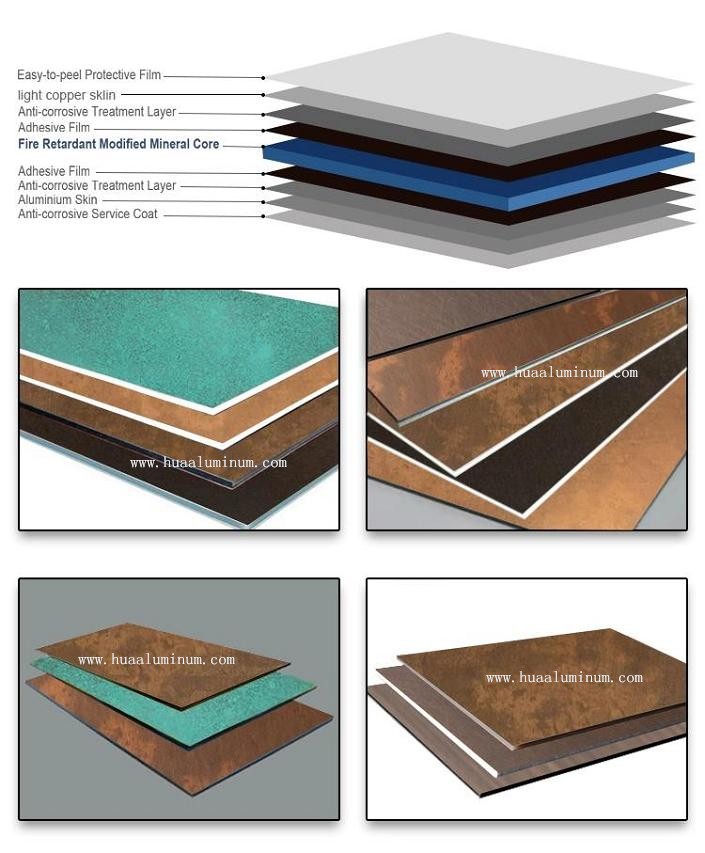

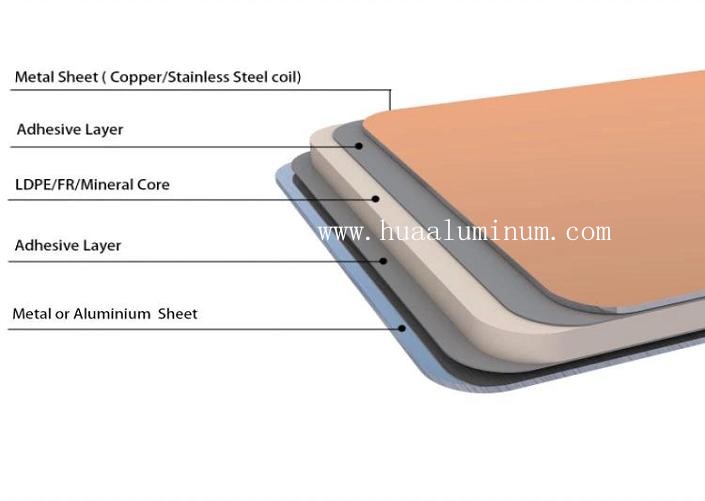

Structure:

• Protective film to protect panel surface
• Copper Sheet
• Polymeric membrane composites the copper sheet onto core.
• LDPE/FR core is made from low density polyethylene or fireproof grade materials.

Specification:

Characteristic

CCP Characteristics:

Other Data:

For normal CCP surface is with pure copper, no extra coating, and when panel apply for exterior, the panel will get oxidization and become dark color gradually. Following project showing the change.

Panel oxidization color chart:

Product Details

The features

Anodized aluminum plastic core copper composite panel exterior wall panels are well known for their features such as excellent fireproof properties, sound insulation, strength & durability, surface flatness and smoothness. Along with these features the most important one that the panel covers is that of being weather resistant as results indicate that brushed panels can withstand the harshest of weather for decades.

1. Excellent weather resistance and fire resistance;
2. Excellent durability and good torsion strength;
3. Lightweight, rigid and superior surface flatness;
4. Good impact-resistance and ultra strong peeling strength;
5. Good workability, simple installation, easy processing and maintenance;
6. Environmental protection.

Feature:

1. High stability, low maintenance cost, environmental-friendly, safety guarantee, easy processing and highly corrosion-resistant.

2. Has the best malleability among the construction metals, therefore can be used in varieties of architectural styles.

3. Copper can form a solid, nontoxic protective layer, commonly known as "verdigris" even in the very high corrosive environment. Its chemical composition depends on the air condition, but the protective effect of various "verdigris" is basically the same. This passivation layer is very stable and can regenerate the damage automatically.

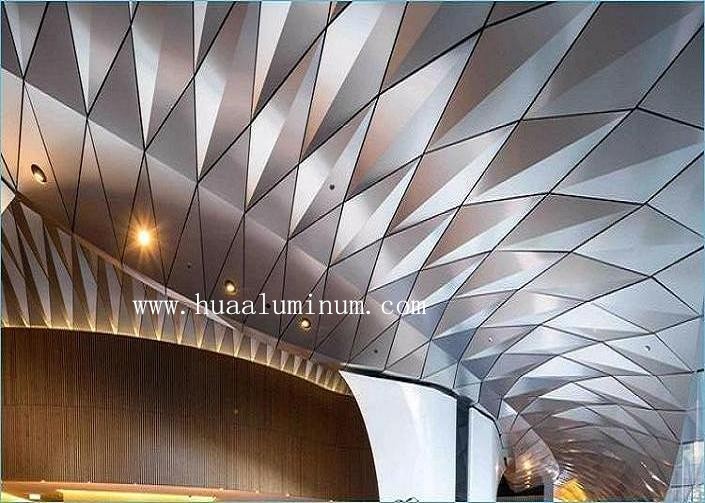

The application

Due to the super peeling strength, good temperature adaptability, excellent performance of fireproof, weather proof, quickly installed, excellent self-cleaning character features, the brushed sheet aluminum is widely used as the building materials.

1. Exterior wall of building, Curtain wall;
2. Refitting or renovating of old building exterior wall.
3. The balcony, equipment unit, interior compartments
4. Panel, logo plate, display platform.
5. The interior wall decoration panel, ceiling, advertising board
6. Industrial usage, cold car body;

Anodized aluminum plastic core composite panel for construction building materials

Specification

Copper surface: Red copper, brass, embossed, brushed, and other three-dimensional and fashionable embossed patina effect

Copper width: 600mm, 800mm, 1000mm

Copper thickness: 0.08mm-0.55mm
