Digital Printing Aluminum Composite Panel

Overview

Place of Origin: Zhejiang, China

Brand Name: HUABOND

Model Number: ACM sign board

Usage: Outdoor

Function: Anti-Static, Antibacterial, Fireproof, Mould-Proof

Surface Treatment: PE Coated, Printing, PVDF Coated

Panel width: 1220mm,1250mm,1500mm

Panel Length: 2440mm or customize

Panel thickness: 2/3/4/5/6mm

Aluminum skin thickness: 0.04mm~0.50mm

Core material: LDPE (Normal and unbreakable core)

Color: solid color, wood, marble, brushed etc

Supply Ability: 30000 Square Meter/Square Meters per Day sign panel

Package of Aluminum composite panel:
1) LCL(Less than one container)
By wooden pallet or wooden box
2) FCL(Full container)
In bulk or other customized package
Quantity in 20ft: 3mm: 5000-5500SQM 4mm: 4000-4500SQM

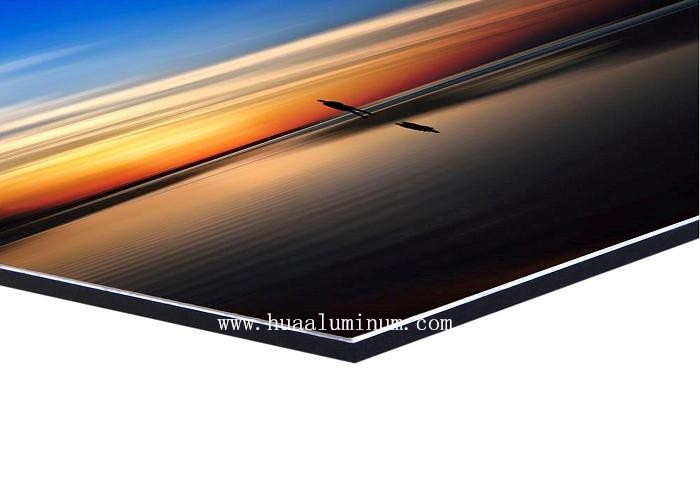

Digital Printing Signage Aluminum Composite Material Sign Panel

Port: Shanghai port

Product Description

Any color and patterns can be customized.

♦ color

Specifications

Laser aluminum composite panel ACP for kitchen & furniture
the latest/newest design in 2013
various color
BV ISO9001 ISO14001

New Design Laser Series Peacock Feathers Aluminum Composite Panel ACP Panels for Cabinet

Laser and Anodized series ACP professional manufacturer---

Why choose us:

♥ own brand: HUABOND

♥ 4 production lines with lots of raw material stocks

♥ Certificate: ISO9001, ISO14001, BV, ASTM E84 report.

♥ Delivery time: 18-22 working days after getting your deposit.

♥ OEM & ODM service are available.

Products Details

Size: 1220x2440mm(width*length)

Thickness: 3mm, 4mm

Thickness of Aluminum alloy: 0.04mm, 0.06mm, 0.08mm, 0.10mm, 0.12mm, 0.15mm, 0.18mm, 0.20mm

Material

Top: aluminum alloy with Pet Film( with laser or other effects)

Core: regular LDPE

Rear: aluminum alloy with primer or just aluminum skin.

Colors: Laser Series, Anodized Series, Wood Grain Series, Marble/Stone/Granite Grain Series, Mirrored Series, Brushed Series, Abstract Series, Zebra Series etc.

Application

Indoors decoration, like Inn/mall/shop wall, cabinet, furniture, cupboard etc.

Characteristics

♣ Uniform and colorful design

♣ Lightweight

♣ Easy to install and maintain

♣ Protecting Environment

♣ Excellent peeling & impact strength

Package: In Bulk, in wooden pallet or as your choice

MOQ: each design or pattern 1000 sqm, can be different color.

Delivery time: 7-10 working days after getting your deposit.

Payment detail: TT, LC

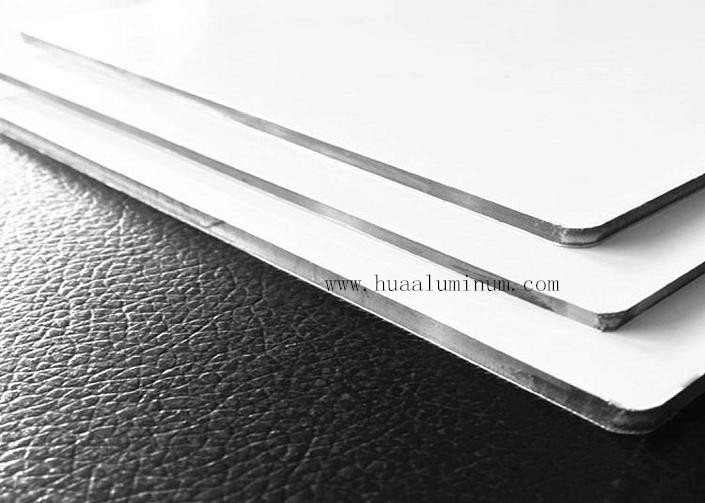

Structure of ACP:

1. Protective film
A layer of PE plastic tape, to protect the panel surface from scratch or damage. The thickness

and sticky standard are various upon different supplier.
2. Color coating
By function: PE & PVDF.

PE is used for interior, with 10 year life long expectancy;

PVDF coating, with resistance on UV, acid and alkali, is more suitable for exterior usage, with10-15 years guarantee.
By color/pattern: solid color, metallic color, brushed finish, mirror finish, marble pattern, wooden pattern.
3.Aluminum skin
Alloy1100 is standard, other series are optional upon specified order.
4.Polyethylene core
By color: White PE core and Black PE core;
By function: Normal PE core, unbreakable PE core and fire-rated PE core.
5.Bottom coating
Mill finish or color service coating.

Product application:

A. Building exterior curtain walls
B. Decoration and renovation additions for old buildings
C. Decoration of interior walls, ceilings, bathrooms, kitchens and balconies
D. Shop door decorations
E. Advertisement board display platforms and signboards
F. Wallboard and ceilings for tunnels

Hunan Huabond Technologies Co., Ltd. was established in 1994. It is a high-tech enterprise specializing in R&D, manufacturing and sales of metal materials. It is located in the Economic and Technological Development Zone of Changsha City, Hunan Province. Huabond is committed to innovation and strives to achieve full coverage with aluminum, copper, stainless steel and other metal materials to meet customers' one-stop procurement needs. The company's own brand HUABOND®, the company's main products are color coated metal coils, fluorocarbon sprayed aluminum solid panel, industrial metal composite panels, stainless steel tubes, ultra-wide and ultra-thick aluminum composite panels and honeycomb panels. Products are widely used in curtain wall interior and exterior decorative panels, roof maintenance system materials, elevator car panels, car panels, advertising panels, home appliances, solar energy and other fields.

HUABOND® is one of the drafters for National Standard of Aluminum Composite Panel & Solid Aluminum Sheet, an establishment member of National Aluminum Composite Panel Association, the executive vice chairman of the Standing Committee ever since, and the first CTC certificated company qualified through the National Building Materials Center.

With up-to-date equipment of 4 Coating Lines, 2 Film Lamination Lines, 4 Slitting Lines, 5 Cutting Lines and Advanced Solid Aluminum Sheet Production Line, and annual capacity of 300,000 tons coated aluminum coils/sheets, 120,000 tons coated steel coils/sheets, 60,000 tons of film laminated metal coils/sheets, 1,000,000 m² solid aluminum sheets, 600,000 m² aluminum honeycomb sheets, and 4,000,000 m² Aluminum composite panels, HUABOND® always takes a leading position on Scale, Variety, Technology & Comprehensive Strength during the industry in China and even in Asia.

Hunan Huabond Technologies Co., Ltd. is committed to creating high-quality modern architectural art space for domestic and foreign customers with the corporate goal of "excellent quality, perfect service, and striving to be the industry leader", upholding professionalism, pursuing excellent quality. The company adheres to the business philosophy of "credibility-based, quality first, hard work and prosperity", combined with the implementation of the national "Made in China 2025" plan and the "Belt and Road" strategy, adheres to a high starting point, high quality, and walks with all partners all the way , Actively improve, seek change in stability, and achieve global consultation, co-connection, co-creation, and win-win.
