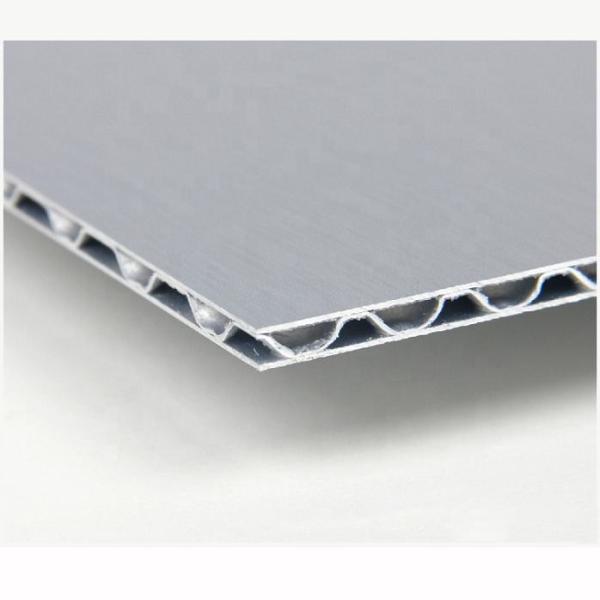

Aluminum Corrugated Core Panel / A2 exterior decoration wall panel

Overview
Product name: Aluminum Composite Core Panel (ACCP)
Place of Origin: Hunan, China
Brand Name: Huabond
Model Number: H-AC202
Function: Anti-Static, Antibacterial, Fireproof, Mould-Proof
Surface Treatment: Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated
Core: Aluminum wave core (ACCP)
Fireproof grade: A2 (ACCP)
Thickness of the whole panel: 3mm/4mm (ACCP)
Thickness of the aluminum sheet: 0-0.7mm (ACCP)
Surface treatment Coating: PVDF / PE / NANO PVDF (for easy cleaning)
Standard Size: 1220mm*2440mm//1250mm*3200mm (ACCP)
Supply Ability: 30000 Square Meter/Square Meters per Week
Maximum Length: <=6000m (ACCP)
Usage: Outdoor
Color: Customized (ACCP)
Packaging Details: standard export wooden case
Port: Shanghai, China

Surface coating:
Aluminum Alloy: AA1100series,AA3003series
Aluminum Skin: 0.3mm,0.40mm,0.45mm,0.50mm
Panel Thickness: 4mm,5mm,6mm
Panel Width: 1220mm,1250mm,1500mm
Panel Length: up to 6000mm,special size on request

Excellent easy-cleaning
Pollution resistance
Oil resistance
Good friction resistance
Strong Acid & Alkali resistance
Outstanding weather resistance

Base material: high strength aluminum alloy sheet
PE core material: non-toxic low density polyethylene
Surface coating: Nano-PVDF coating
Back coating: primer coating

Product Introduction of the Aluminum 3D panel aluminum core panel
Regular Size: 1220*2440mm
Thickness: 3mm / 4mm
Weight: 3.4kg / m2 (3mm) 4.5kg / m2 (4mm)
Aluminum Core Composite Panel ACCP is the updated product from aluminum honeycomb panel and aluminum composite panel. Aluminum core composite panel is firmer and lighter than aluminum honeycomb panel with lower price. Besides, compare with aluminum composite panel, aluminum core composite panel fireproof strength is much better. There are no PE but aluminum, this is the reason why aluminum core composite panel is totally environmentally and fireproof. What's more, the appearance is various, no matter stone, wood or mirror could be processed. So Aluminum core composite panel could perfectly instead aluminum honeycomb panel and aluminum composite panel.

Technical Details of the Aluminum 3D panel aluminum core panel

Aluminum Core Panel compare with other material

Package detail
Product and Delivery of the Aluminum 3D panel aluminum core panel
Product details
About the products
1. Have the highest fire-retardant grade A2 FR.
2. Than aluminum honeycomb panels much cheaper.
3. Than aluminum solid panel lighter and flatter.
4. Than aluminum corrugated panels more durable.
5. Than aluminum composite panel toxic free and fire proof.

Comparison of ACCP and the existing metal curtain wall material

Is the wall entirely non-combustible?　Would it perform long-term(without the cladding)as the building's BCA
compliant external wall?
ACCP-this means the cladding is considered an "attachment" and your aluminum cladding with a "FR","PLUS", or "A2" grade core is more than likely considered compliant!

What is ACCP?
With the innovation of core technology, HUABOND® A2 has developed A2+ non-combustible aluminum sandwich panel for strict requirements of fire retardancy regulations in architecture products.
Aluminum Core Composite Panel ACCP is an improved honeycomb panel that does not incur the expensive unit price of aluminum honeycomb panel but much lighter and slimmer than the latter. It is fully composed of aluminum, 100% environmentally friendly and A2 Grade fire resistant. It has the feature of easy fabrication like aluminum composite panel. Additionally, the perfect surface presentation can be shown as a stone-like, wood-like or brush surface.

Physical Data
Compared to traditional fire-proof aluminium sandwich panel, HUABOND® A2® A2+ is all the same but the technology of the core, which is composed of 100% profiled lattice aluminium structure rather than mineral core.

This structure assures the panel of non-combustibility and makes it more reliable and popular in all façade applications, especially in UK (BS 476-6 standard) and Australia (AS 1530.1 standard) who have higher requirements and demands on fire retardancy.

Superior feature
a. Light weight, Good rigidity, high strength and safety
The aluminum honeycomb panel weight is only 1/70 of that for bricks and 1/3 of that for stainless steel.

b. Fireproofing Properties
Tested by National Research Center of Testing Techniques For Building Materials, the properties of Aluminum Honey comb Composite Panels meet the requirement of non-flammable materials. According to GB-8624-1997 Standard, the aluminum honeycomb panels fireproofing grade is GB-8624-B1 Grade.

c. Super Flatness and Rigidity
The special hexagonal structure of aluminum honeycomb panel is composed of many dense hexagonal cells and these cells are similar to many I shapes, which averagely take the pressure from the panel surface. The property assures the high compression strength and super flatness over a large area.

d. Moisture resistance, Corrosion Resistant
The Aluminum honeycomb Panel surface skins are manufactured through roller-coating techniques, thus anti-anodizing, color-stable and no going moldy and deforming. According to testing, the aluminum honeycomb panel remains intact after immersed in 2% HCL solution or in saturated Ca(OH)2 Solution for 24 hours.

e. Sound Insulating, Heat Insulation, Heat Preservation
Between the two skins are divided into many closed and independent cells, which to a great extent limit the transmission of sound wave and heat.

f. Environmentally Friendly
High quality aluminum single solid panel for ceiling could be recycled absolutely which is different with other material. And aluminum honeycomb panels does not emit any hazardous gas and easy to be cleaned and also easily recyclable.
