    Mould Proof 1000mm ACP Aluminium Composite Panel For Exterior Wall

    Ask Lasest Price
    Brand Name : Huabond
    Model Number : H-A109
    Certification : CE, SGS, PSB, etc.
    Payment Terms : T/T, L/C
    Delivery Time : 18-22 days
    • Product Details
    • Company Profile

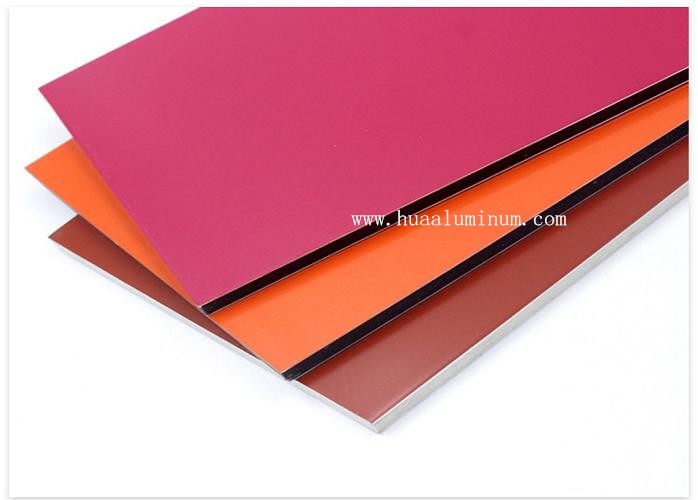

    Mould Proof 1000mm ACP Aluminium Composite Panel For Exterior Wall

    aluminum cladding


    Product information :

    Trademark: Huabond

    Model NO.: H-A109

    Panel Thickness: 2mm-16mmm
    Length: range from 1000mm-5800mm is available
    Width: range from 1000mm-2000mm is available

    Advantages :: Fireproof , Easy install, light ,can recycle ,non-pollution
    Certification: CE, , ISO9001, SGS, Rosh and so on
    Aluminum Alloy: Grade 1100 / 8100
    aluminum Thickness: range from 0.03mm-0.60 mm is available
    Coating: PE,FEVE & PVDF
    Guarantee: PE 8-10 years / PVDF 15-20 Years
    Packaging way :Wooden case ,pallet , Plywood , and nude packing
    Origin: China
    Surface Finishing: Coating
    Usage: External Wall, Interior decoration , Curtain Wall, fascia , Printing panel, Sopraporta.
    Weight: 3mm 8.8--13.90 kg per pcs ; 4mm: 12.7-27.89 kg per pcs
    HS Code: 76061251


    Product Description
    PE/PVDF ACP Constitution Structure

    1Protective film with Huabond or as your request
    2Coating : Coating with PE/PVDF
    3Macromolecular film
    4Core Material: PE Core
    5Rear side: Aluminum coating with primer or as requested.



    Product Description

    Specifications of aluminum composite panel (ACP sheet)Dimensional tolerance
    Panel Thickness2mm,3mm,4mm,5mm,6mmPanel Width+/_2mm
    Panel Width1000mm,1250mm,1500mm,2000mm (maximum)Panel Length+/_3mm
    Panel Length1000mm-6000mmPanel Thickness+/_0.2mm
    Surface coatOne side coil coated, backside lacquer finishPanel Diagonal<=5mm
    Other surfaceBoth side coil coated lacquer, One side anodized, backside lacquer finishAluminum sheet thickness+/_0.02mm
    Standard size

    1220mm*2440mm*3mm for interior

    1200mm*2440mm*4mm for exterior

    Standard color30 kinds. Special color available upon request
    Characteristics of aluminum composite panel ACP sheetApplication of aluminum composite panel ACP sheet
    1.High resistance to peeling1.Exterior architecture cladding
    2.Superior weather resistance2.Interior designs
    3.Light weight and easy to process3.Advertisings Signage
    4.Excellent fire resistance properties
    5.Coating evenness
    6.Diversified colors
    7.Easy for maintenance
    8.Impact resistance


    FAQ
    1) What is the minimum order quantity?
    200 pcs for aluminum composite panel for one color
    2) How long can I get a quote?
    The quotation can be provided not longer than 24 hours on condition that we know all detaile
    3) Can I get a sample?
    Yes we offer free samples. Delivery cost is to be paid by clients
    4) Can I buy installation accessories from you?
    Yes, we provide wet wall and dry wall system installation accessories.If you want to know more about the installation of aluminium composite panel, pls click the website:www.zwm.com.cn
    5) Why can I trust you and place order with you?
    1. We are manufacture and supplier of aluminum composite panel in china with over 27 years experience.
    2. We have 4 ACP production lines and 2 large coating lines keep fastest delivery, our output is around 35000 pieces per day with size of 1220*2440mm.
    3. Best price could be offered as we have own aluminum pre-paint coil factory.
