    Impact Resistant ACP Aluminium Composite Panel , 1.22x2.44m Aluminum Composite Sheet

    Ask Lasest Price
    Brand Name : Huabond
    Model Number : H-A119
    Certification : SGS, CE, PSB, etc.
    Payment Terms : T/T, L/C
    Delivery Time : 18-22 days
    • Product Details
    • Company Profile

    Impact Resistant ACP Aluminium Composite Panel , 1.22x2.44m Aluminum Composite Sheet

    composite sheet


    Overview

    Size: 1220*2440*5mm

    Brand Name: Huabond

    Usage: Outdoor, Exterior

    Application: Decoration

    Standard size: 1220*2440*4mm

    Panel thickness: 2mm, 3mm, 4mm, 5mm, 6mm

    Aluminum sheet thickness: 0.15mm, 0.21mm, 0.30mm, 0.40mm, 0.50mm

    Core: Recycle PE Core/Fireproof PE Core/Unbreakable PE Core

    Coating: PE/PVDF/NANO/Anti-scratch

    Function: Anti-Static, Antibacterial, Fireproof

    Color: Solid / Metallic / Marble / Wooden / Brush / Glossy

    Package Type: in wooden pallet or in bulk, 1100 sheets / 20ft

    Surface Treatment: Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated, Wood grain Aluminum Composite Panel


    SURFACE PROPERTIES

    Paint Thickness(micron)Anodize
    Pencil Hardness2H
    Toughness Of Coating2T
    Temperature Resistance-50°C+90°C
    Impact Strength(kg/cm2)50
    Boiling Water Resistanceboiling for 2 hours, No change
    Acid ResistanceImmerse surface in 2% HC1 for 24hours,No change
    Alkali ResistanceImmerse surface in 2% NAOH for 24hours,No change
    Oil ResistanceImmerse surface in 20# engine oil for 24hours,No change
    Solvent ResistanceCleaned 100 times with Dimethyl benzene, No change
    Cleaning Resistance>1000 times no change
    Thermal Expansion2.4mm/m @100°C Temp difference
    Peel StrengthAverage 131N.mm/mm
    Bending Strength>100MPA
    Bending Elastic Modules>2.0*104MPA
    Heat Distortion Temperature>95°C

    Feature:


    -Light weight, high strength, extreme rigidity, superior impact resistance,

    -excellent surface flatness and smoothness,

    -heat insulation, sound insulation, fire-resistance,

    -acid-resistance, alkali-resistance, good weatherproofing and non-resonance

    -various uniform colors, can be easily processed and fabricated, quickly installed,

    -elegant and magnificent, good flexibility fits various designs,

    -easily maintenance, simply cleaning




    Basic Material

    1) front side: aluminum alloy sheet coated with fluorocarbon resin(PVDF) or polyester resin (PE)

    2)Core material: nontoxic polyethylene, PE, FR, LDPE

    3) Back side: aluminum alloy sheet coated with polyester resin painting(PE)


    Applications:

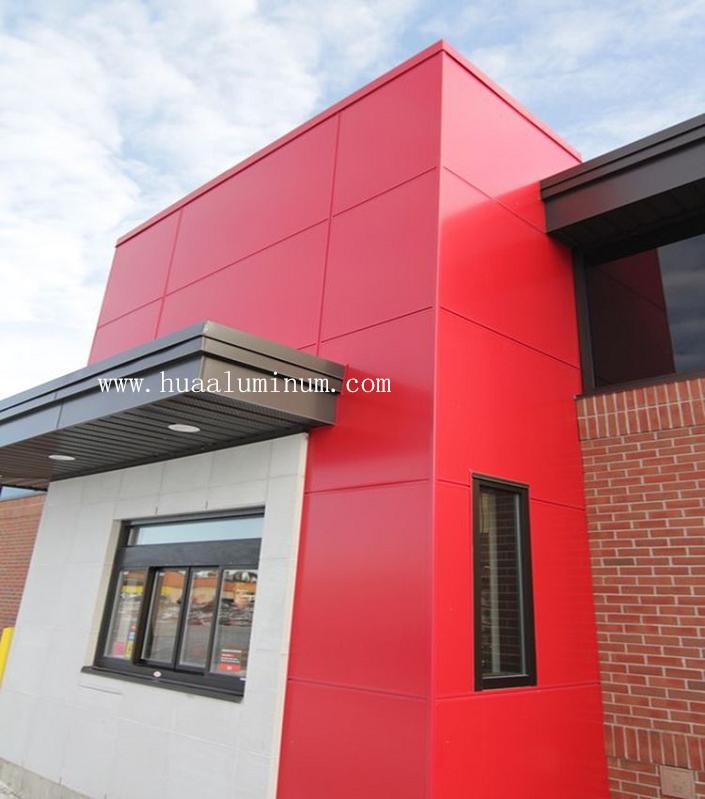

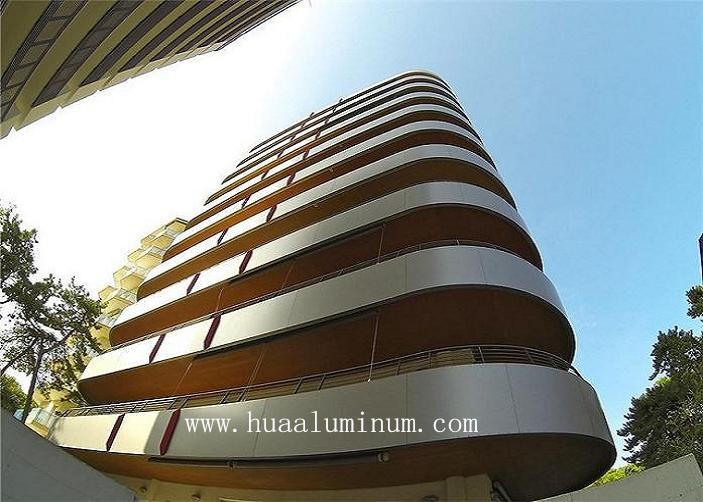

    1. Constructional exterior curtain walls;

    2.Decorative renovation for storey-added old buildings;

    3. Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;

    4.Advertisement board, display platforms and signboards;

    5. Wallboard and ceilings for tunnels;

    6. Raw materials in industrial purpose;

    7. Materials used for vehicle and boat.


    Properties:

    .

    Paint Thickness(micron)≥ 25um
    Pencil Hardness2H
    Toughness Of Coating2T
    Temperature Resistance-500C+900C
    Impact Strength(kg/cm2)50
    Boiling Water Resistanceboiling for 2 hours, No change
    Acid ResistanceImmerse surface in 2% HC1 for 24hours,No change
    Alkali ResistanceImmerse surface in 2% NAOH for 24hours,No change
    Oil ResistanceImmerse surface in 20# engine oil for 24hours,No change
    Solvent ResistanceCleaned 100 times with Dimethyl benzene, No change
    Cleaning Resistance>1000 times no change
    Thermal Expansion2.4mm/m @1000C Temp difference
    Peel StrengthAverage 131N.mm/mm
    Bending Strength>100MPA
    Bending Elastic Modules>2.0*104MPA
    Heat Distortion Temperature>950C

    Features :

    a)Torsion Strength
    High resistance to pressure and force exertion; High flexibility; No damages to paint layer when curved; Resistant to corrosion even by sand storm;

    b)Easy Processing & Installation
    Easy to process due to its light weight; Superior constructibility make it easy to cut, plan edge, bend and form with simple tools;

    c)Thermal Resistance
    Huabond ACP's have insulating properties that prevent heat to penetrate structures, which translates into energy savings;

    d)Fire Resistance
    PE plastic core plate is adopted as the flame retarding substance in between difficult-combustible aluminum layers; Fireproof ability is higher than B1 grade standard;

    e)Weather Resistance
    PVDF coating(KYNAR-500)material provides good weatherability. The surface will not be damaged under any climate; Color will last longer;

    f)Even Coat &Various Colors
    Huabond ACP's use advanced film technology, making the joining of paint and panel strong and uniform; Diversity of colors can satisfy your different requirements;

    g)High Impact Resistance
    Innovative composite production of viscoelastic core fused with durable aluminum membranes provides high impact and breakage resistance;Huabond ACP is strong and rigid;

    h)Peel Strength
    Advanced technology is applied in Huabond ACP's which enhances the key factor, peel strength, to an excellent condition; Planeness of panel has been largely improved;

    i)Sound Resistance
    The unique non-combustible polyethylene core of Huabond ACP's provides sound reducing properties better than other materials such as wood and steel;

    j)Easy to Maintain
    Huabond ACP's enjoy the advantage of self-cleaning; Neutral detergent and water are enough to keep it clean;
