Polyester Coating Aluminum Coil

Quick Details

Place of Origin: Hunan, China

Brand Name: HUABOND

Model Number: H-C128

Application: Roofing

Surface Treatment: Coated

Metal Ceiling Material: Aluminum

Color: Customer's Color

Thickness: 0.25mm-0.70mm, 0.25mm-0.70mm

Width: 50mm-1600mm, 50mm-1600mm

Grade: 1000 Series

Alloy: 1050/1060/1100/3003/5005/5052/5083/3005/8011

Temper: O - H112

Certification: ISO9001:2008

Type: PE Coil Color Aluminum

Package: Wooden Pallet

Supply Ability: 25000 Ton / Per Month

Packaging Details: Export standard, wooden pallet

Lead Time: 18-22 days

Port: Shanghai

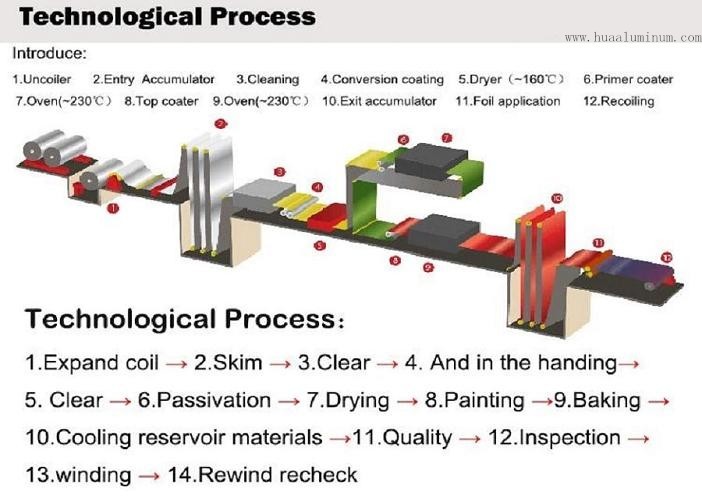

The coated aluminum coil coating is divided into polyester (PE) coating aluminum coil and fluorine-carbon (PVDF) coating aluminum coil. The polyester coating formed through multiple baking and coating of the aluminum plate surface can generate fast continuous solid film which functions as protection and decoration. It is a coating resistant to UV. Polyester resin takes the high-molecular polymer containing ester bond of the main chain as monomer, and with the addition of alkyd resin. According to glossiness, it can also be divided into matte series and high light series. With desirable glossiness and smoothness, the product may also strengthen the sense of depth and three-dimensional effect. It can protect the objects from the erosion of ultraviolet ray, wind, rain, frost, snow, ice and freezing when exposed to the air. Impacted by temperature difference, freezing and thawing cycle, corrosive gas, and microorganism, the coating can serve as protection and is especially suitable for indoor decoration and

Specifications:

01) Alloy: A3003 A1100 A8011 A1050etc

02) Aluminum thickness: 0.02mm~1.00mm

03) Aluminum max width: 1600mm

Standard width: 1240mm

Special width such as 1300mm, 1520mm, 1570mm, 1595mm are also available

04) Coil's standard diameter: 1200mm

Interior diameter: 150mm, 405mm or 505mm

05) Weight: 2.5T/coil 3.0 T/coil

06) Coating finish: PVDF, POLYESTER, ACRYLIC

07) Gloss: meet the customer requirement

08) Total coating thickness:

PVDF coating: more than 25 micron

Polyester coating: more than 18 micron

09) Coating hardness (pencil hardness) more than 2H

10) Coating adhesive: no lower than first grade

11) Impact resistance: No cracking and peeling (50kg/cm, ASTM D-2794:1993)

12) Flexibility (T-bend): 2T

13) MEK resistance: more than 100

14) Bottom side aluminum sheet is coated with protective polyester material, thickness more than 6 micron

15) Outer packing; export standard, wooden plate .

Product Name: color coated aluminum coil

Width: 50mm-1600mm

Aluminum Thickness: 0.018mm-1.0mm

Coating Thickness: 14-20micron

Coil Weight: 1.0-3.0tons per coil

Surface Treatment: PE Coated, PVDF Coated, Printing

Diameter: 150mm, 405mm, 505mm

Normal Colors: white, metallic, dark, gold series (accept color customized)

FAQ

Q: How soon can I get a price quote?

A: Once we know the panel thickness, aluminum thickness, dimensions, paint requirement (PVDF coating or PE coating), we can provide you with one competitive price quote.

Q: Do you provide samples? Is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. Or it is 18-22 days if the goods are not in stock, it is according to quantity.

Q: How can my order produced by my brand?

A: Yes, you can. Please offer your brand or LOGO design to us, then we could produce all goods brand or LOGO.

Q: What is the MOQ?

A: Due to high machine setup cost and shipping freight, our minimum order quantity is 5 Ton recommended for you to order a 20''GP to reduce the unit and shipping cost.

Q: How to choose the panel thickness for different usages?

A: Exterior usage: 4mm panel with 0.30mm, 0.40mm or 0.50mm aluminum skin, better in PVDF coating.
Interior usage: 2mm/3mm/4mm panel with 0.06mm, 0.10mm, 0.15mm or 0.21mm aluminum skin, PE coating is ok.

Q: How to check whether this product is in good quality?

A. First is to see whether the surface is smooth enough, no ripple, bubbles and scratches.
B. Second is to check whether the panel thickness and aluminum skin thickness is thick enough.
C. To check the core material, whether it's easy broken.
D. To test the peel strength between aluminum skin and the core.
E. See whether company is normal manufacturer, which have ISO, CE, SGS certificate.

Q: How to confirm the color for what you want?

A: You can contact me for our color card.
You can also choose a color from the RAL/Panton color card.
