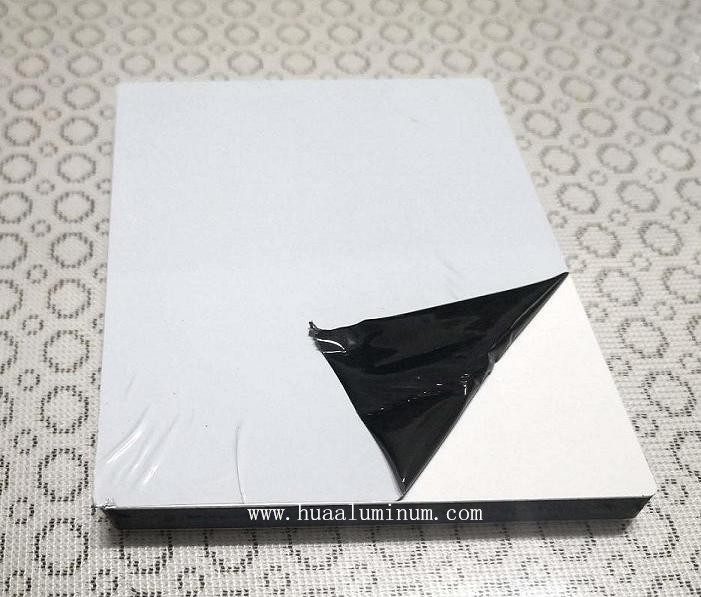

16mm Aluminum Composite Panel

Overview

Brand Name: HUABOND

Model Number: H-A505

Usage: Outdoor

Function: Fireproof

Thickness: 3mm-16mm

Surface Treatment: Anodized, Brushed, Foil Decoration, PE Coated, Printing, PVDF Coated

Color: Solid Color

Coating: PE, FEVE, PVDF

Application: Building Exterior Wall

Lead Time: 18-22 days

Certificate: CE/SGS/ISO9001

Port: Shanghai

Place of Origin: Changsha, China

Product Description

1) Material:

A) Front : aluminum alloy sheet coated fluorocarbon resin (PVDF) with Nano lacquer

B) Core: nontoxic low density polyethylene

C) Back: aluminum alloy sheet coated with polyester resin painting

D) Surface coating thickness: 32μ±1μ

E) Aluminum alloy: 3003 H24

F) Sheet thickness: 0.3mm, 0.4mm, 0.5mm

2) Dimensions

A) Thickness: 3mm,4mm,6mm,8mm,10mm

B) Width: 1220mm,1250mm,1500mm,1570mm,1800mm,2000mm(max)

C) Length: 2440mm, 3050mm, 3200mm( max:6000mm)

D) Weight: 5.5kg/sqm based on 0.5/4mm thickness

E) Standard size:1220*2440mm

F) Qty/20'fcl:4mm/2380sqm; 3mm/2977sqm

G) Non-standard size are available according to requirement

3 ) Standard:

A) West Europe standard (Germany DIN Standard);

B) The EAST Europe standard (Russian standard);

C) The common wealth standard (U.K BS standard);

D) The North America ASTM standard;

4) HUABOND® ACP compared with different product( Lightness / Rigidity ):

The composite structure of HUABOND® results in an impressive strength-to-weight ratio, even when comparing large panel sizes. Despite its low weight, which makes HUABOND® easy to transport and handle in the factory and on site, its rigidity and high strength make the panels keep their shape and remain flat, even when exposed to extreme temperature changes. Comparison of thickness and weight of panels with equal rigidity

5) HUABOND® ACP compared with solid aluminum:

Required thickness and actual weights of panels with same rigidity

6) HUABOND® ACP Physical Properties for Panel:

1. aluminum composite panel sheets profile

Front side of ACP: aluminum roll coated with PVDF or PE

Core: nontoxic and low density polyethylene/plastic fireproof materials.

Rear side of ACP: aluminum coated with polyester

2. Standard dimensions

1220*2440*3/4mm

3. Specifications

Panel thickness:2mm-15mm

Aluminum thickness:0.25mm-0.5mm

Width: upon request ,max up to 2000mm

Length: upon request, max up to 11500mm Colors: more than 40 colors to choose, and RAL, PANTON, Non-standard color is available according to customers' request.

4. Applications

-Exterior application as:

Wall cladding, facades, roofs and canopies, tunnels, column covers or renovations.

-Interior applications as:

Wall cladding, ceilings, bathroom, kitchens and balconies.

Advertisement and market application as:

Display platforms, signboards, fascia and shop fronts etc.

Specifications and Sizes:

Aluminum skin thickness: 0.12mm-0.50mm.

Aluminum panel thickness: 2mm,3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,11mm,12mm,13mm,14mm,15mm,16mm

Width:1000mm,1220mm (regular), 1250mm,1300mm,1500mm,1550mm, 1575mm,2000mm(maximum);

Length: Up to 11500mm;

Standard size: 1220mm(Width) *2440mm(Length); 1500mm(Width)*3050mm(Length).

.Loading quantity: Bulk: 1550sheets/20ft. Wooden cases: 100 pcs/Strong wooden cases. Total: 12 wooden cases.

7)Main aluminum composite wall panel Product: PE coated ACP,PVDF coated ACP, Nano PVDF coated ACP, Mirror finish ACP, Brushed ACP, Wooden ACP, Granite ACP and Fireproof core ACP.
8) Non-standard sizes and special colors are available depending on customers’ offers.

2.Available Colors:
We can produce all colors on all professional color cards

3.Details:
1)Second Name: HUABOND aluminum composite panel ACP / exterior building decorations walls panels
2)Aluminum Source: South West Aluminum Factory
3) Painting Source: PPG&BECKER
4)PE core Material: Non-toxic and low-density Polyethylene
5) Payment Term: TT, LC at sight and D/P
6)Production Capability: 250000SQM/Month
7)More Service: OEM, Samples free(samples will be sent in one day time )
8)Feature Super peeling strength/ Good temperature adaptability/ Excellent performance of fireproof/ Weather proof/ Quickly installed/ Excellent self-cleaning character

4.Applications:

1) Constructional exterior curtain walls, Wall Panel are widely used in exhibition, stores, offices, banks, hotels, restaurants and apartments;
2) Decorative renovation for storey-added old buildings, facades, roofing;
3) Indoors decoration for interior walls, ceilings, bathrooms, kitchens, balconies and subway;
4) Advertisement board, display platforms, billboards and signboards;
5) Wallboard and ceilings for tunnels;
6) Raw materials in industrial purpose;
7) Material used for vehicle bodies, yachts and boat

FAQ

Q: How long is your lead time?
A:lead time18-22 days for special ACP, 30 days for special orders.

we have varied specification inventory mill coils for various clients from all over the world.

Q: What's your payment term?
A: T/T, L/C, And we have flexible payment according to customers credit.

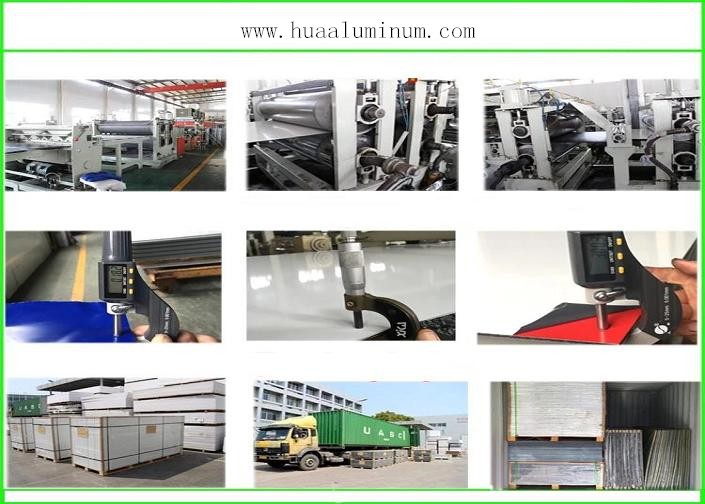

Q: How about you Inspection & Packaging?
A: Double inspection and tracking system by our well-educated people,each batch of orders must be strictly checked by on-site workers and export inspectors from beginning to after loading .Standard wooden packing according to customer’s demands.

Q : What is the benefit for distributors for Huabond brand ?
A: As our distributors, we give attractive price, best payment term, and promotion support another necessary support.

Q : What special specification Huabond can do ?
A: thickness from 1mm to 16mm, maximum width is 2030mm. With 20 years guarantee.
