    4x8 Aluminum Honeycomb Panels , Moisture Proof 10mm Honeycomb Panel

    Ask Lasest Price
    Brand Name : Huabond
    Model Number : H-H101
    Certification : SGS, CE
    • Product Details
    • Company Profile

    4x8 Aluminum Honeycomb Panels , Moisture Proof 10mm Honeycomb Panel

    Honeycomb Aluminum panel


    Overview


    Brand Name: Huabond

    Model Number: H-H101

    Place of Origin: Hunan, China

    Usage: Indoor & outdoor

    Color: Customer's Requirements

    Function: Anti-Static, Antibacterial, Fireproof, Mould Proof

    Surface Treatment: Anodized, Brushed, Foil Decoration, Mirror

    Application: FurnitureDoorsDecoration materials..

    Size: Customer's Requirements

    Core cell: 4.8-30mm

    Material: Aluminum

    Supply Ability: 100000 Square Meter/ Per Month

    Packaging Details: Customer's Requirements

    Port: Guangzhou, China


    Aluminum Honeycomb Core Feature in :

    Aluminum Material typeH-H101
    Aluminum core thickness of al foil(mm)Customer's Requirements
    Height/Sheet thicknessCustomer's Requirements
    Aluminum Honeycomb Core cell size(mm)4.75-25.95

    Aluminum honeycomb core as a new product, has been widely applied in various fields. My company's products market nationwide and exported to all over the world have large. Widely used in various industries.
    Decoration materials Aluminium honeycomb panel wall plywood, Aluminium honeycomb composite ceiling, Aluminium honeycomb anti-static flooring, Aluminium honeycomb composite partition Aluminum honeycomb composite fire doors, Aluminum honeycomb composite marble , etc.
    Household appliances Air conditioning cold accelerant mesh, Refrigerator deodorant, Heater lattice nets, Air purifier ventilation bars, etc.
    Lighting industry: Various light guide grating exhibition, the traffic light, etc.

    Transportation industry: Aluminum honeycomb composite of the train, Train doors, partition, Aluminum honeycomb composite ship trim panels, etc.
    Furniture industry: All kinds of furniture of honeycomb composite with moisture proof, moth-proofing, fire prevention function.


    New Design Core Aluminum Honeycomb Core Sandwich Panel


    TypeAluminum honeycomb Panel for wall cladding
    PatternLaminate / HPL / High Pressure Laminate Aluminum Honeycomb Panel
    Aluminum AlloySolid Color/Metallic Color/ Wood Grain/ Marble Skin Look
    Aluminum Panel Thickness10mm, 15mm,20mm,25mm
    Adhesion AgentEnvironmental Adhesive Film

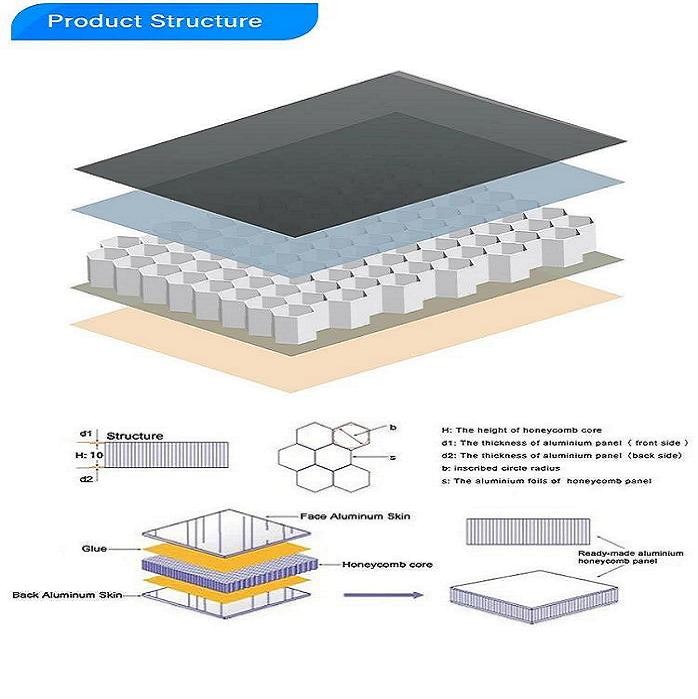

    Product Structure

    PVDF coating aluminum composite honeycomb panel

    4x8 Aluminum Honeycomb Panels , Moisture Proof 10mm Honeycomb Panel


    Product Parameter

    ProjectStandard Specification and Parameter
    SpecificationOverall Thickness:10, 12, 15, 20, 25 mm
    Width ≤ 1500 mm ( Other width can be negotiated)
    Length ≤ 10000 mm ( Other width can be negotiated)
    Front PanelMaterial: High grade aluminum alloy (3003,5005, 5754, AA1100)
    Thickness ≥ 1.0 mm(curtain wall panel's standard); ≥ 0.7 mm(nonstandard)
    Core MaterialsMaterial : High grade anticorrosive aluminum honeycomb core material
    Aluminum foils' thickness: 6mm
    Back PanelMaterial : High grade aluminum alloy (3003,5005, 5754)
    Thickness ≥ 0.7 mm(standard) ; ≥ 0.5 mm(standard)
    BinderTwo-component high-temperature curing polyurethane adhesive of fuller/hot melt adhesive membrane.
    TreatmentRoller coating/ Anodized oxidation/ Powder coating/ PVDF coating
    ColorPlain colored, metallic color, pearl etc..
    Density5.0-7.5 kg/ m2
    Fireproof PerformanceA2 (GB8624-2012)

    Advantages of Aluminum Honeycomb Panel

    1. Energy saving, green material: Good thermal and sound insulation & sound insulation, fire resistance.

    2. High wind load resistance: High strength & rigidness and stable structure of honeycomb core.
    3. Easy installation & low labor cost: Light weight
    4. Good decoration: Excellent flatness & wide color selection.


    Features

    Features of aluminum honeycomb panels

    Weight
    One of the primary reasons for utilizing aluminum honeycomb panels is that they exhibit excellent strength-to-weight ratios compared to traditional construction materials.
    Strength
    The ability to configure panels with different materials allows us to create much stronger panels than one can achieve with solid structures. The skill, however, is in analyzing all of the material choices for meeting your specifications and then selecting those that will provide the most functionality at the lowest cost.
    Fire Resistance
    Huabond uses a number of materials that are non-combustible and self extinguishing. Most flammability ratings and building codes can be easily met with some combination of materials.
    Thermal Control
    Most aluminum honeycomb panels have excellent insulation properties simply due to the nature in which they are designed. Since both honeycomb and foam cores trap air between the skins, they are inherently insulating to some degree.
    Sound Control
    While we do not specialize in acoustical panels, we are happy to incorporate any type of sound deadening specifications into the composite panels that we design.
    Impact Resistance
    Impact resistance can be accounted for by adjusting the honeycomb cell size, utilizing different core materials and skins, or adding thickness to the surface material and/or core.
    Moisture Resistance
    All types of aluminum and plastic honeycomb cores can be used to improve water and moisture resistance, but RFP surface materials can also do the job for many applications.
    Corrosion Resistance
    Not only can we utilize different core and surface materials to achieve resistance to weather and chemicals, but coatings can be applied for added security.
