    Mould Proof ACP Building Material 700mm Aluminium Composite Wall Panels

    Ask Lasest Price
    Brand Name : Huabond
    Model Number : H-A516
    Certification : ISO9001, SGS, CE, ASTM
    Payment Terms : T/T, L/C
    Delivery Time : 18-22 days
    • Product Details
    • Company Profile

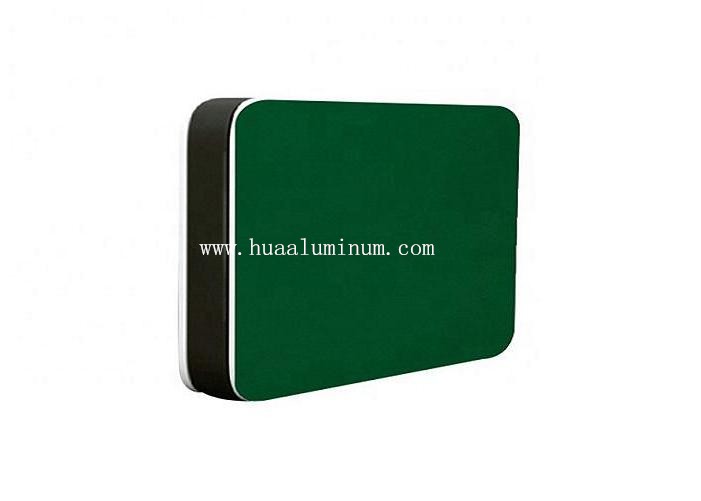

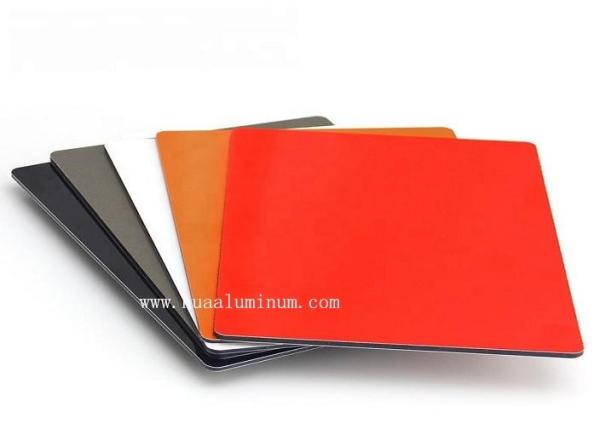

    Mould Proof ACP Building Material 700mm Aluminium Composite Wall Panels

    composite wall panel


    Quick Details


    Brand Name: HUABOND

    Model Number: H-A516

    Usage: Outdoor

    Panel thickness: 2mm-18mm

    Aluminum thickness: 0.2-0.5mm

    Width: 700-2000mm

    Function: Anti-Static, Antibacterial, Fireproof, Mould-Proof

    Surface Treatment: Brushed, Mirror, PE Coated, PVDF Coated

    Surface treatment: PE/PVDF/FEVE/NANO

    Color: Stone Coated

    Certificate: ISO9001/SGS/CTC/CE

    Supply Ability: 40000 Square Meter/ Per Day

    Packaging Details: Wooden Pallets, Wooden Case, In Bulk Package

    Lead time : Shipped in 18-22 days after payment

    Place of Origin: Hunan, China

    Port: Shanghai or Shenzhen



    Product Description


    HUABOND aluminum composite panel is famous for domestic and overseas markets high quality and good reputation. It is made for five layers, HUABOND PVDF/PE coated top and back aluminum sheets, upper and lower polymer adhesive film, PE core through compositing, setting and cooling with advanced processes. It has high strength, stable dimensions, flat surface, inner stress lower than same kind, even and various colors of coating, outstanding adhesion, and excellent corrosion resistance, weather resistance and contamination resistance, being a kind of ideal curtain material for decoration and interior and exterior walls. The main products include ordinary aluminum composite panel, fire-proof aluminum composite panel with fire resisitance grade A and grade B, contamination resistance self-clean aluminum composite panel



    Product Details

    Product ItemMarble Stone Coated Aluminum Composite Panel
    Total Panel Thickness2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 18mm
    Aluminum Skin Thickness0.08/0.10/0.15/0.20/0.21/0.25/0.30/0.35/0.40/0.45/0.50mm, as per request
    Width1000mm,1220mm 1250mm,1500mm,1550mm, 2000mm, as per request
    Length2440mm, 3200mm,4000mm, 5000mm, 6000mm, as per request
    Standard Size1220*2440mm
    Inner CoreNontoxic PE core, Half unbreakable, Unbreakable, Virgin LDPE, FR Core
    Top Coating TypePE, PVDF, FEVE, NANO, Anti-scratch, Fireproof
    Back Coating TypeMill finish , Color coated (PE, Epoxy), as per request
    Color RangeMarble/Stone Grain (RAL color, Wood grain, Brushed, Mirror, etc.)
    Top Coating ThicknessPE ≥18μm, PVDF ≥25μm, as per request
    Back Coating Thickness≥7μm, as per request
    Pencil Hardness≥H
    T-Bend Test≤2T
    MEK TestMore than 100 times
    Impact TestNo cracking and peeling(50kg/cm)
    Color Difference△E<0.5
    Adhesion GradeGrade 0
    Paint CompanyPPG Valspar Becker KCC Nippon


    Applications

    1) Exterior applications such as: Curtain wall, roofs and canopies, tunnels, column covers, pipes or renovations
    2) Interior applications such as: Wall cladding, ceilings, roller shutters, bathrooms, kitchens and balconies
    3) Advertisement and market applications such as: Display platforms, signboards and fascia
    4) Composite panel material, such as aluminum composite panel, honeycomb panel



    Company Profile

    HUABOND is our brand.

    We are HUNAN HUABOND GROUP, Established In Dec. 1994

    Our major products are as following:

    -6 production lines for Color coated aluminum coil, Color coated steel coil (PCM/VCM)
    -1 production lines for Embossed aluminum coil (2 style: stucco, diamond)
    -3 production lines for Aluminum composite panel
    -2 production lines for Solid aluminum sheet.

    Packing & Delivery

    1.There are 3 kinds of package types for Aluminum Composite Panel (ACP):

    1) In Bulk

    2) Wooden Cases

    3) Wooden Pallets

    Normally we can mix the 3 kinds of package in container.

    2.Delivery time: within 18-22days



    FAQ

    1.Q:What is the material of your products?
    A: The material are mainly color coating Aluminum and color coated steel and aluminum composite panel.
    2.Q:How can I get some samples?
    A: We are honored to offer you samples.
    3. Q:Can you make new mold with customized size I need?
    A: Yes, We can make mold for you .
