| Brand Name : | Huabond |
| Model Number : | H-H111 |
| Certification : | CE, ASTM, ISO9001, SGS |
| Delivery Time : | 18-22 days |
Honeycomb plate
Basic Info.
Trademark: Huabond
Model No.:H-H111
Surface treatment: Polished
Surface: Powder, Mill, Anodize, Polish, Sand Blasting etc.
Transport Package: Wooden Pallet
Thickness: According to Customer Requirement
Specification: 1220*2440mm
Origin: Hunan, China
HS Code: 7606 1259

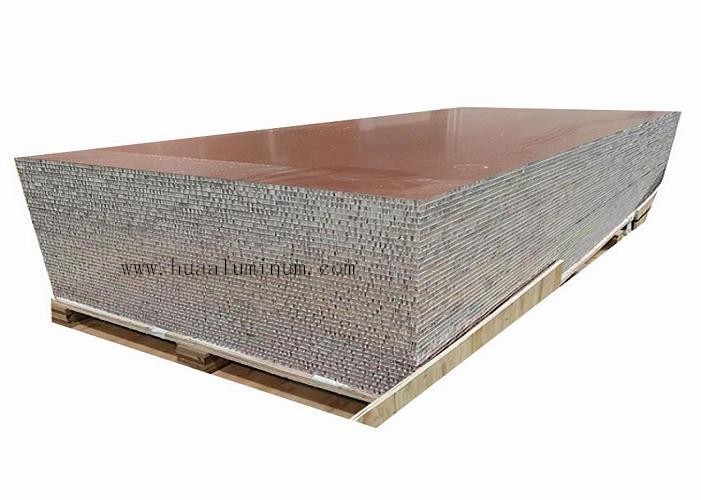

Aluminum honeycomb plate for decorate furniture vehicle
Product Details
| Product Name | Aluminum honeycomb plate for decorate furniture vehicle |
| Grade | 1000 series: 1050, 1060, 1070, 1100, 1200 2000 series: 2024, 2030, 3000 series: 3003, 3005, 3105 4000 series: 4343 5000 series: 5005, 5052, 5054, 5083, 5086, 5182, 5754 6000 series: 6061, 6063, 6005, 6082 8000 series: 8011, 8006 etc. |
| Surface | Anodized, brushed, polished, mill finished, power coated, sand blast... |
| Executive Standards | ASTM B209, JIS H4000-2006, GB/T3190-2008, GB/T3880-2006, etc. |
| Length | as customers' requirement |
| Width | as customers' requirement |
| Thickness | as customers' requirement |
| Packing | Standard export packing |
| Temper | O, H14, H16, H18, H24 etc. |
| Payment Terms | TT, L/C at sight |
| Application | 1) For decorate furniture |
| 2) Vehicle; | |
| 3) Advertising board, building, aviation; | |
| Shipment | By sea/by train/by air plane |
| Port | Guangzhou port |
Our advantage:
1. Since 1994, we have rich experience in this industry in China;
2. Good reputation in household foil areas;
3. We start our productions from aluminum ingot, so we can control
the quality as well;
4. Design ability;
5. Price advantage.
6. Good experience and cooperation with big clients in the world;
7. With Certificate ISO9001-2008;
8. Sample order is acceptable
9. High performance cost ratio;
10.Fast delivery time and fast resolve problem attitude.

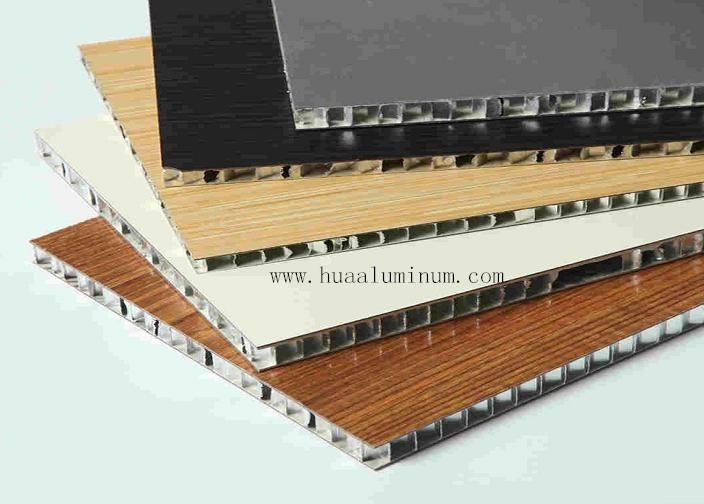

Product Introduction
Huabond honeycomb panels, which is one of the best environmental
composite materials with perfect strength, super flatness and
excellent sound & heat insulation but with light weight and easy
processing. The panels can be manufactured based on your
specifications for a various applications, such as wall cladding
(exterior & interior), ceiling, flooring, partition, ship hull,
elevator, container, door and metro & bus station, etc.
Specification:
| Material | Aluminum Alloy (3003/5052, etc.) |
| Regular Size (W*L*T) | 1,220*2,440/3,000*6 mm |
| Max. Size(W*L*T) | 2,000*10,000*200 mm |
| Regular Thickness | 10/12/15/20/25 mm |
| Available Thickness | 5-300 mm |
| Regular Surface Treatment | PVDF, PE, Powder Coating, Anodized, etc. |
| Perforation | Yes (customized) |
| Applications | Wall cladding(exterior & interior), ceiling & flooring, cleanroom, partitions, ship hull, vehicles, tunnel, etc. |
| Customerization(MTM) | Yes (color, surface texture, size, shape, pattern, etc.) |
| OEM | Available |
| Suggestion: | |
| 1. For interior wall: Surface - PE coating; Thick range - from 8mm to 20mm (top plate:1.0mm; bottom plate: 0.7/0.8mm) | |
| 2. For exterior wall: Surface - PVDF coating; Common thick: 15mm, 18mm, 25mm,30mm (top plate: from 1.0mm to 2.0mm; bottom plate: from 0.7mm to 1.0mm) | |
Standard Installing System for Aluminum Honeycomb Plate (customized
installation systems are available):
Type A: standard seaming installing method of outdoor for aluminum
honeycomb panel
2. Technical Data / Test Report
| Technical Data Of HONGZAN Honeycomb Panels | ||
| Testing sample thickness: 20mm / 25mm ( 1.0+1.0) : | ||
| Thickness | 20mm | 25mm |
| Front aluminium panel | 1.00mm | |
| Back aluminium panel | 1.00mm | |
| Weight (kg/m2) | 7.4 | 7.8 |
| Mechanical Property of composite panel and panel | ||
| Inertia Moment I (cm4/m) | 19.85 | 31.67 |
| Section Modulus W (cm3/m) | 19 | 24 |
| Rigidity of Composite panel E.I (KN cm2/m) | 139000 | 2217000 |
| Aluminum profile panel | AA 5754A(ALMg3) | |
| Modulus of Elasticity (N/mm2) | 70000 | |
| Tensile Strength of facing panel (N/mm2) | Rm ≥ 220 | |
| 0.2% Yield Stress(N/mm2) | Rp0.2 ≥ 130 | |
| Extensibility (EN485-2:1194) | A50 ≥ 8 | |
| Aluminum linear thermal expansion | 2.4mm/m when the temperature difference is 100ºC | |
| Surface decoration layer | PVDF Spray Baking finish | |
| Glossiness (original Data) | 30-40% | |
| Hardness of pencil | HB-F | |
| Core of Honeycomb | ||
| Size of honeycomb | 1/4''(6.3mm) | |
| Density | About 80kg/m3 | |
| Compression strength (MILL-STD-401) | 4N/mm2 | |
| Function Of Acoustics | ||
| Data of sound absorption As | 0.05 | |
| Factor of sound insulation According to ISO717-RW | 23 | 25 |
| Function Of Heating | ||
| Data of Heat Conduction λ*(w/m2k) | 2.25 | 2.7 |
| Data of Thermal Insulation R(1/m) (m2k/w) | 0.0089 | 0.0093 |
| Data of Heat Transmission U(k) (w/m2k) | 5.59 | 5.575 |
3. Factory Show & Production Process :
The production process of Aluminum Honeycomb Panel:
cut the aluminum coil into different sizes---paste protective
film---flat pressing---polishing---carving/cutting the
corners/bending if necessary---composite with honeycomb
core---trimming if necessary---package
|
|
