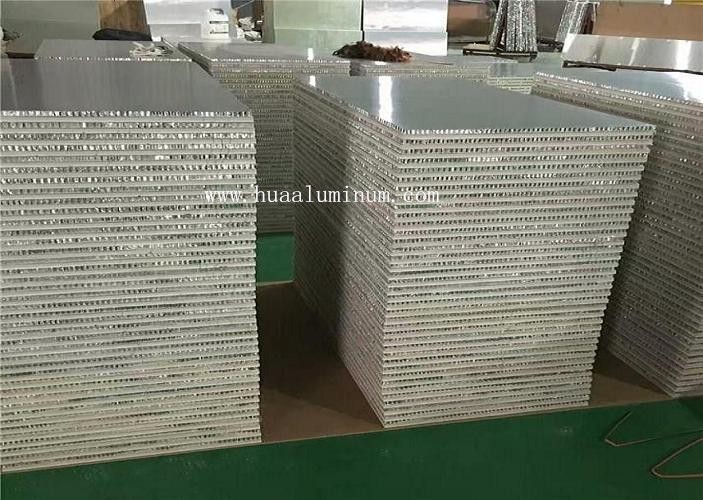

Aluminum honeycomb wall panel
Characteristic:
☆ Light weight, reduce the load of buildings.
☆ High strength ,high rigidity, good anti wind pressure ability.
☆ Have excellent performance in sound insulation and heat
insulation.
☆ Perfect surface smoothness, easy for installation.
☆ Good fireproof and waterproof property.
Product Specification:
| Product Name | Aluminum Honeycomb Panel |
| Material | Aluminum Alloy 3003,1100,5005,etc |
| Max Size(mm) | Length≤3000,Width≤1300 |
| Thickness(mm) | 10~100mm |
| Color | RAL color, Wood grain, Stone grain, Mirror, other |
| Surface Treatment | Powder coating, PE coating, PVDF coating ,Roll painting |
| Finished | Perforated, Non-perforated |
| Shape | Flat, Curved, Irregular |
| Edge | Covered, Uncovered |
Features:
1. Energy saving, green material: Good thermal and sound insulation
& sound insulation, fire resistance.
2. High wind load resistance: High strength & rigidness and stable
structure of honeycomb core.
3. Easy installation & low labor cost: Light weight
4. Good decoration: Excellent flatness & wide color selection.
5. Working Temperature: -55ºC to 175ºC in long term
6. Excellent fireproof property
7. Super peeling strength
8. Perfect cold resistance performance
9. Excellent surface flatness and smoothness
10. Superior weather, corrosion, pollutant resistance
11. Even coating, various colors
12. Superior impact resistance
13. Lightweight and easy to process
14. Easy to maintain
Technical Data:
| Density | 6.0-24.0kg/m3 |
| Tensile strength | 140-180 M Pa |
| Wind Load | >8000N/m2 |
| Fire Rating | B1 |
| Thermal Resistance | 0.02(m2·K/W) |
| Thermal Conductivity | 0.104-0.130W/M.K |
| Sound Absorption | 30DB |
| Energy Absorption | 150-3500KJ /M2 |
Packaging &Loading:
| Packing Detail | wooden package , protective PE film , or according to client requirements |
| Loading Detail | 1.The samples will be sent by Courier service 2.According to the product quantity and specification to arrange FCL or LCL, cooperate with many strong companies for many years to ensure the good service and suitable price. 3.Making good use of every space of the container, in order to minimize shipping cost and loading the goods in the most safety way. |

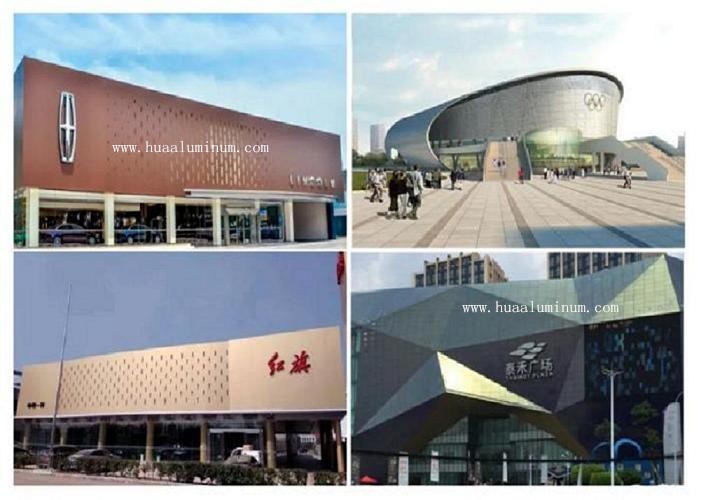

Application:
1. Interior or exterior wall cladding for public buildings.
2. Indoor ceiling decorative material.
3. Also can be used for partition, flooring, doors etc.
4. Exhibition booths, movable houses.
5. Large scale aviation and marine projects.
6. Commercial transport vehicles and container vehicles.
FAQ:
1. What is delivery time?
18-22 days after deposit, Except for public holidays.
2. How can you guarantee the quality?
We have rigorous quality test system, from raw materials to
finished products, the materials must be checked and signed by QC .
3. How long can I get a quote?
The quotation can be provided no longer than 24 hours on condition
that we know all detailed requirements.
4. Can I get a sample?
Yes we offer free samples. Delivery cost is to be paid by clients.
5. Can you provide OEM service?
Yes, we can produce under your own brand name. Logo and design need
to be provided so as to make customized brand name.
6. Can I buy installation accessories from you?
Yes, we provide all installation accessories, please contact with
our professional sales team.
|
|
