MCM Metal Composite Material

Overview

Place of Origin: Hunan, China

Brand Name: HUABOND

Model Number: H-A206

Usage: Indoor

Coating: Polyester (PE), PVDF, Nano PVDF, FEVE, Super PE, etc.

Standard size: 1220*2440mm

Panel thickness: 2/3/4/5/6mm

Aluminum thickness: 0.04mm to 0.5mm

Thickness of the panel: 1mm-8mm

Width: standard: 1220mm,1250mm, options: 900mm, 1000mm, 1500mm,and so on

Surface Treatment: Anodized, Brushed, Foil Decoration, Mirror, PE Coated, PVDF Coated, Perforated

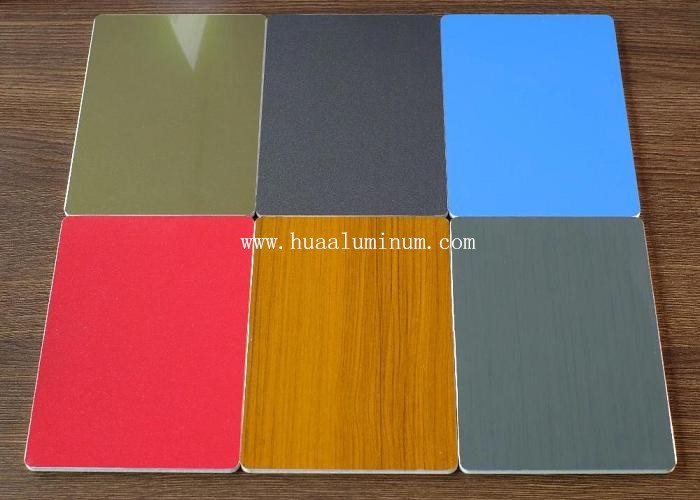

Color: Solid, Metallic, High gloss, pearl, spectra, mirror, brushed etc.

Length: Options: any customized length that fits the container

Function: Anti-Static, Antibacterial, Fireproof, Mould-Proof, Fireproof, self-cleaning, Anti-Static, Antibacterial, etc.

Certification: SGS / CE / CTC / ISO 9001:2008 / ISO 14001:2004 / GB/T 1774-1999 etc.

Supply Ability: 2000000 Square Meter/Square Meters per Month

Packaging Details: wooden pallet or in bulk, standard export package in bulk: 3mm=5600-5800SQM, 4mm=4200-4700SQM.

Port: Shanghai Port

Aluminum composite material best factory

Application

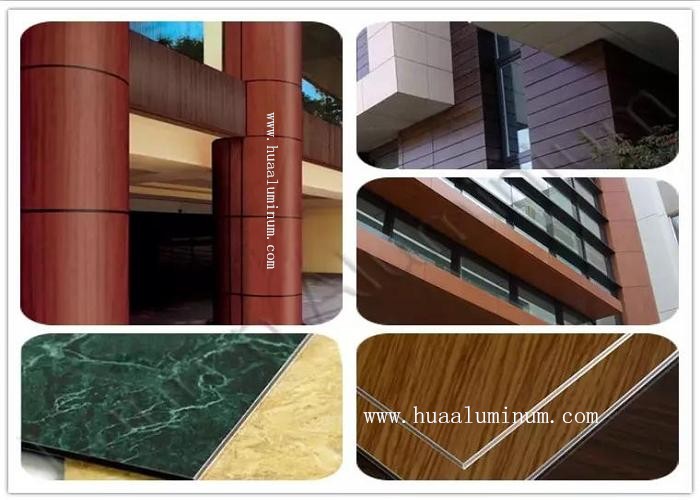

This product is widely applied for advertising signs, Exterior and interior decoration, and external walls decoration of office building, banks shopping malls, exhibition centers and etc.

Specification

Material: High Density PE Plastic Core + Aluminum Surface

Panel Thickness: 3mm/4mm

Aluminum thickness: 0.08mm ~0.25mm/ 0.08mm~0.50mm

N.W:4.0kg-4.5kg

Unit: pc

Style: Polyester coated panel Fluorocarbon coating panel, two- continuously plate, fireproof panel, two-way fireproof panel

Product Description

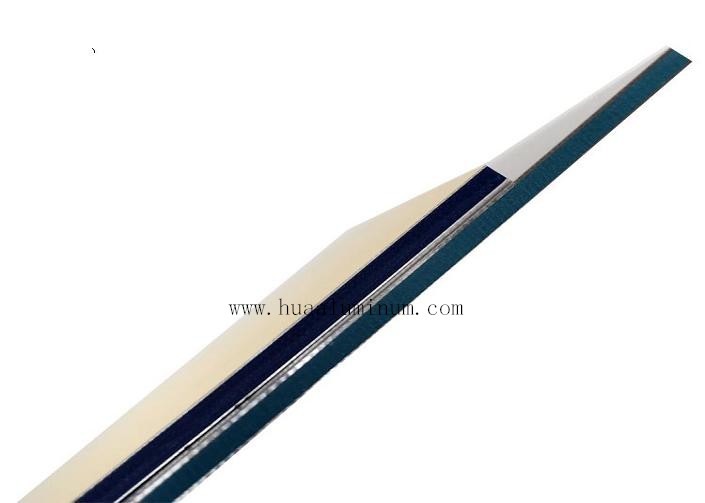

Protective film to protect panel surface

PVDF coating with clean or colors applied on aluminum sheet

Polymeric membrane composites the aluminum onto core

LDPE/FR core is made from low density polyethylene or fireproof grade materials

Features

- Excellent fire resistance, low flammability, good heat

- insulation and easy processing,

- super impact and peel strength,

- excellent surface flatness and smoothness

Product Uses

- Building exterior curtain walls

- Decoration and renovation additions for old buildings

- Decoration of interior walls, ceilings, bathrooms, kitchens and balconies

- Shop door decorations

- Advertisement board display platforms and signboards

- Wallboard and ceilings for tunnels

PVDF MCM

ACM is aluminum composite material consisting of two aluminum cover sheets sandwiching a nontoxic low density polyethylene core produced from a continuous extrusion process. When the ACM is used for external cladding of buildings, it is usually called aluminium composite material, shortened as ACP.

Aluminum composite material is consisted of 3 layers, the surface and back covers of high strength aluminum alloy sheets and the core of nontoxic low density polyethylene (PE) sheet. The painting in the surface and back aluminum sheets are from PPG.VALSPAR of USA and Becker of Sweden.

Strictly according to the international quality system ISO9001 and ISO14001 produce superior quality PVDF aluminium composite material. Our PVDF aluminum composite material passed GB/T1778-1999, SGS tests and gained CE certificate. Because of its excellent weather proof and other features, the panel becomes a very popular Cladding materials in the world.

Hunan Huabond Technologies Co., Ltd. was established in 1994. It is a high-tech enterprise specializing in R&D, manufacturing and sales of metal materials. It is located in the Economic and Technological Development Zone of Changsha City, Hunan Province. Huabond is committed to innovation and strives to achieve full coverage with aluminum, copper, stainless steel and other metal materials to meet customers' one-stop procurement needs. The company's own brand HUABOND®, the company's main products are color coated metal coils, fluorocarbon sprayed aluminum solid panel, industrial metal composite panels, stainless steel tubes, ultra-wide and ultra-thick aluminum composite panels and honeycomb panels. Products are widely used in curtain wall interior and exterior decorative panels, roof maintenance system materials, elevator car panels, car panels, advertising panels, home appliances, solar energy and other fields.

HUABOND® is one of the drafters for National Standard of Aluminum Composite Panel & Solid Aluminum Sheet, an establishment member of National Aluminum Composite Panel Association, the executive vice chairman of the Standing Committee ever since, and the first CTC certificated company qualified through the National Building Materials Center.

With up-to-date equipment of 4 Coating Lines, 2 Film Lamination Lines, 4 Slitting Lines, 5 Cutting Lines and Advanced Solid Aluminum Sheet Production Line, and annual capacity of 300,000 tons coated aluminum coils/sheets, 120,000 tons coated steel coils/sheets, 60,000 tons of film laminated metal coils/sheets, 1,000,000 m² solid aluminum sheets, 600,000 m² aluminum honeycomb sheets, and 4,000,000 m² Aluminum composite panels, HUABOND® always takes a leading position on Scale, Variety, Technology & Comprehensive Strength during the industry in China and even in Asia.

Hunan Huabond Technologies Co., Ltd. is committed to creating high-quality modern architectural art space for domestic and foreign customers with the corporate goal of "excellent quality, perfect service, and striving to be the industry leader", upholding professionalism, pursuing excellent quality. The company adheres to the business philosophy of "credibility-based, quality first, hard work and prosperity", combined with the implementation of the national "Made in China 2025" plan and the "Belt and Road" strategy, adheres to a high starting point, high quality, and walks with all partners all the way , Actively improve, seek change in stability, and achieve global consultation, co-connection, co-creation, and win-win.
