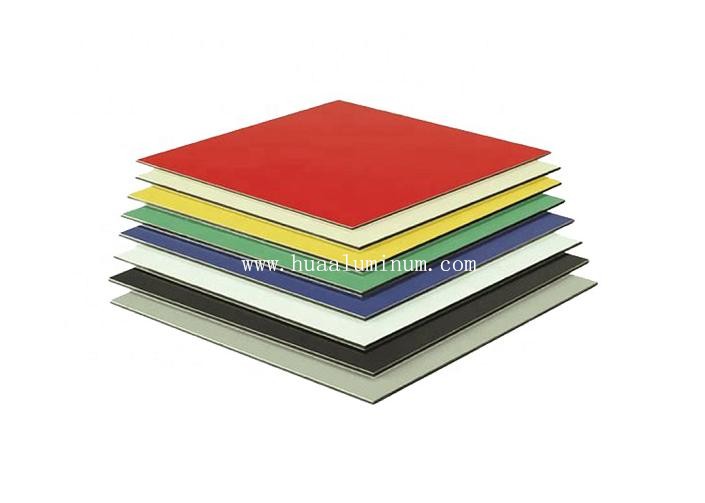

Alco panel

1. Specifications

PE aluminum composite panels is essentially composed of three layers which together along with a coating of PE combine to form a highly insulated flat panel. The two layers of aluminum sheets are bonded together permanently with an internal core of polyethylene which when coated through PE makes the surface even more flat and highly resistant. An important point is that only the front of the panel is coated with PE (Polyester) Paint so that maximum damage can be absorbed without damaging the interior core and sheet.

2. Product Characteristics

1) Our aluminum composite panel is with light weight, high intensity, and easy to maintain, cut, bend, arch and install. The panel average weight is 3.5 – 5.5 kg/sqm

2) Huabond aluminum composite panel is extremely good resistance against weather, acidity and alkaline, great thermal insulation, acoustic insulation and damping

3) Huabond aluminum composite panel surface is dust-proof treated, smooth, flat and easy to maintain; just a neutral cleaner with water can totally renew the panel

4) The aluminum surface is tough and the core PE panel is flexible to give the panel high impact resistance

5) Fireproof and noise absorptive (the PE core absorbs noise and the aluminum resists fire)

Overview

Place of Origin: Hunan, China

Brand Name: HUABOND

Usage: Indoor

Color: RAL Color

Application: Cleanroom Panel

Panel thickness: 2/3/4/5/6mm

Key Words: Clad aluminum metal

Surface: Decorative Aluminum Foil

Size: 1220*2440

Aluminum Thickness: 0.01-0.5mm

MOQ: 600sqm/color

Function: Anti-Static, Antibacterial, Fireproof, Mould-Proof

Surface Treatment: Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated

Aluminum Alloy Grade: 1100 3003 3004 5005 5052 5083

Certificate: ISO9001 ISO14001 OHSAS18001

Supply Ability: 48000 Square Meter/ Per Day

Packaging Details: packed in bulk or wooden pallet; standard packaging

Port: Shenzhen

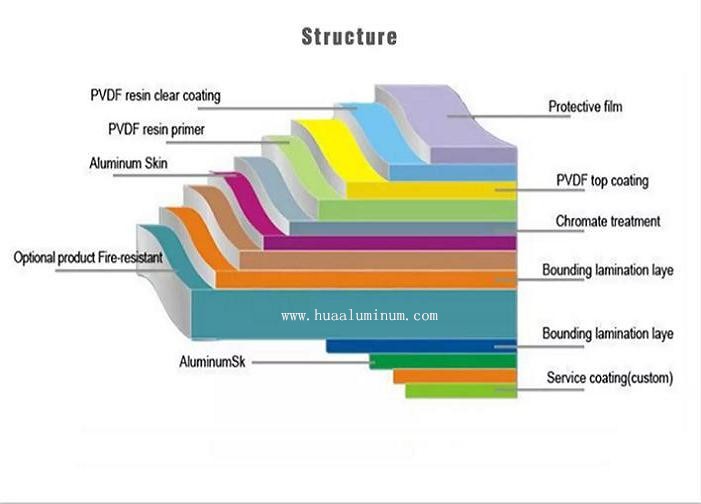

PVDF ACP Constitution Structure:

1)Protective film with IDEABOND/OME brand or as your requested

2)Front side: aluminum roll coated with PVDF

3)Macromolecular lamination film.

4)Core: Non-toxic polyethylene.

5) Macromolecular lamination film.

6) Rear side: Aluminum coated with primer or as requested.

1. Aluminium composite panel ACP Structure

2. Aluminum plastic board dimensions recommend

3. Range of applications
1) galleries, exhibitions, saloons, stores, offices, banks, hotels, restaurants, and apartments .
2) as ideal decorative materials for the outer-wall and inner-wall of buildings.
3) Kitchen cabinets, billboards, signboards, tunnels and subway interiors.
4) Ceilings, eaves, balconies, partitions and interior decorations.
5) Telephone booths, vehicle bodies, and industrial usages.
6) Re-decoration of the old building

4.Quality and character

1)Under natural climate ,film coating will be no flake .no rubbles ,no vestige and no pulverization.

2)Under common environment, no flake, no rubbles.
3)Under common temperatures and radiation, no color deferent.
4)According to international test standard,all the tested items are satisfied with high-class.
5)Our products with PVDF coating which produced under GB/T17748-1999 is with 70% PVDF.and under common environment,we can guarantee 15~20 years;and for FR products,it is good at fireproof,and the FR grade is B1(according to the standard Q B8624).

Packaging & Shipping

seaworthy packing:1*20' FCL loading about 1200 sheets . 1. Bulk Packing (Recommend building panels) 2.Wooden Pallet Packing (Recommend Signage Advertising Panels) 102~105 sheets per pallet ; 1*20' FCL loading 4~8 pallet ,1*40' FCL loading 12~16 pallet.

Hunan Huabond Technologies Co., Ltd. was established in 1994. It is a high-tech enterprise specializing in R&D, manufacturing and sales of metal materials. It is located in the Economic and Technological Development Zone of Changsha City, Hunan Province. Huabond is committed to innovation and strives to achieve full coverage with aluminum, copper, stainless steel and other metal materials to meet customers' one-stop procurement needs. The company's own brand HUABOND®, the company's main products are color coated metal coils, fluorocarbon sprayed aluminum solid panel, industrial metal composite panels, stainless steel tubes, ultra-wide and ultra-thick aluminum composite panels and honeycomb panels. Products are widely used in curtain wall interior and exterior decorative panels, roof maintenance system materials, elevator car panels, car panels, advertising panels, home appliances, solar energy and other fields.

HUABOND® is one of the drafters for National Standard of Aluminum Composite Panel & Solid Aluminum Sheet, an establishment member of National Aluminum Composite Panel Association, the executive vice chairman of the Standing Committee ever since, and the first CTC certificated company qualified through the National Building Materials Center.

With up-to-date equipment of 4 Coating Lines, 2 Film Lamination Lines, 4 Slitting Lines, 5 Cutting Lines and Advanced Solid Aluminum Sheet Production Line, and annual capacity of 300,000 tons coated aluminum coils/sheets, 120,000 tons coated steel coils/sheets, 60,000 tons of film laminated metal coils/sheets, 1,000,000 m² solid aluminum sheets, 600,000 m² aluminum honeycomb sheets, and 4,000,000 m² Aluminum composite panels, HUABOND® always takes a leading position on Scale, Variety, Technology & Comprehensive Strength during the industry in China and even in Asia.
