    Anti Scratch Curtain Aluminium Honeycomb Composite Panel 2000mm

    Ask Lasest Price
    Brand Name : Huabond
    Model Number : H-H113
    Certification : SGS, CE, ASTM, ISO9001
    Payment Terms : T/T, L/C
    Delivery Time : 18-22 days
    • Product Details
    • Company Profile

    Anti Scratch Curtain Aluminium Honeycomb Composite Panel 2000mm

    Curtain honeycomb panels


    Quick Details


    Place of Origin: Hunan, China

    Brand Name: HUABOND

    Model Number: H-H113

    Usage: Outdoor

    Function: Anti-Static, Antibacterial, Fireproof, Mould-Proof

    Surface Treatment: PVDF Coated

    Aluminum Alloy: AA1100, AA3003 (other grade on requirement)

    Aluminum Thickness: 0.8/1.0/1.2

    Width: 1000mm-2000mm

    Panel Thickness: 10mm-25mm

    Supply Ability: 400000 Square Meter/ Per Year

    Coating: PE / PVDF

    Core: LDPE / Fireproof

    Certificate: CE, ISO9001, VOC

    Standard: EN13501-1 / ASTM E84

    Packaging Details: strong Wood-Metal cases or Bulk/Nude packing

    Port: Guangzhou port


    Anti Scratch Curtain Aluminium Honeycomb Composite Panel 2000mmAnti Scratch Curtain Aluminium Honeycomb Composite Panel 2000mm


    Products Description

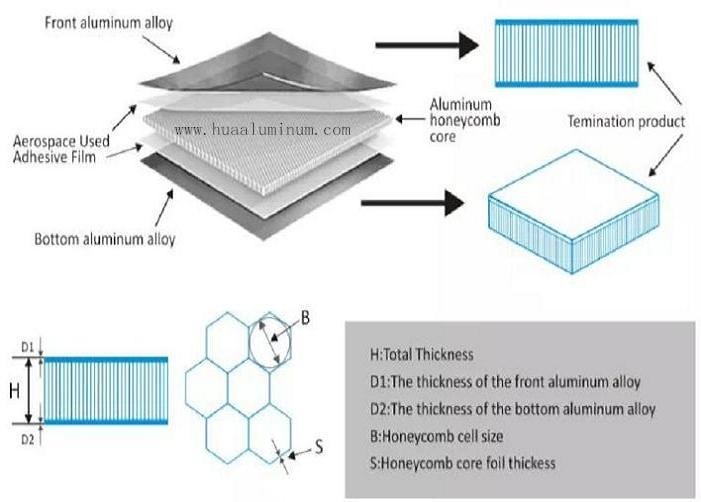

    Aluminum honeycomb core is made of multiple layers of aluminum foils, processed by gluing, pressing and expanding. It has sharp and clear hole surface, which is suitable for splicing high-quality core-to-core panels and other purposes. It is widely used in architectural curtain wall, clean room system, aerospace, marine, defense, rail and automotive industries etc.

    Huabond has achieved from the raw materials to end products of aluminum honeycomb core. With the good reputation, excellent quality and the best price, Huabond’s products are exported to Europe, North America, Middle East, Southeast Asia and other countries and regions.


    Anti Scratch Curtain Aluminium Honeycomb Composite Panel 2000mm


    Light weight, high strength, good rigidity and tear resistanceMetal manufacturing, easy recycling, green environmental protection

    Excellent resistance to high temperature, corrosion and aging

    Fire retardant, sound insulation, good thermal insulation effect

    Strong decoration, easy processing, stable performance


    Anti Scratch Curtain Aluminium Honeycomb Composite Panel 2000mm


    Product Specification

    TypeNormal aluminum honeycomb
    Side length4mm5mm6mm7.5mm10mm12mm15mm
    Cell size1/4 inch 6.35mm1/3 inch 8.47mm3/8 inch 9.53mm1/2 inch 12.7mm3/4 inch 19.05mm4/5 inch 20.32mm1 inch 25.9mm
    Maximum dimension after expansion(mm)8000*1700
    Foil type&thickness(mm)3003H18 0.04 0.05 0.06 0.07 0.08 0.1 5052H18 0.04 0.05 0.06 0.08
