Anti Scratch Coated Aluminium Coil 3mm Tickness Aluminum Sheet Roll

Hunan Huabond Technologies Co., Ltd
Contact Now
    Buy cheap Anti Scratch Coated Aluminium Coil 3mm Tickness Aluminum Sheet Roll from wholesalers

    Buy cheap Anti Scratch Coated Aluminium Coil 3mm Tickness Aluminum Sheet Roll from wholesalers
    • Buy cheap Anti Scratch Coated Aluminium Coil 3mm Tickness Aluminum Sheet Roll from wholesalers
    • Buy cheap Anti Scratch Coated Aluminium Coil 3mm Tickness Aluminum Sheet Roll from wholesalers
    • Buy cheap Anti Scratch Coated Aluminium Coil 3mm Tickness Aluminum Sheet Roll from wholesalers
    • Buy cheap Anti Scratch Coated Aluminium Coil 3mm Tickness Aluminum Sheet Roll from wholesalers
    • Buy cheap Anti Scratch Coated Aluminium Coil 3mm Tickness Aluminum Sheet Roll from wholesalers
    • Buy cheap Anti Scratch Coated Aluminium Coil 3mm Tickness Aluminum Sheet Roll from wholesalers
    • Buy cheap Anti Scratch Coated Aluminium Coil 3mm Tickness Aluminum Sheet Roll from wholesalers
    • Buy cheap Anti Scratch Coated Aluminium Coil 3mm Tickness Aluminum Sheet Roll from wholesalers

    Anti Scratch Coated Aluminium Coil 3mm Tickness Aluminum Sheet Roll

    Ask Lasest Price
    Brand Name : HUABOND®
    Model Number : H-C118
    Certification : ISO9001, CE, ASTM, SGS
    Payment Terms : T/T, L/C
    Delivery Time : 18-22 days
    • Product Details
    • Company Profile

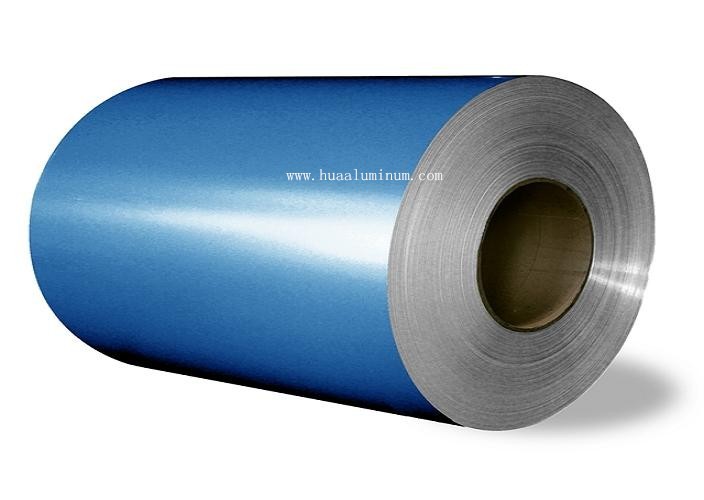

    Anti Scratch Coated Aluminium Coil 3mm Tickness Aluminum Sheet Roll

    Color aluminum coil


    Quick Details


    Place of Origin: Hunan, China

    Brand Name: HUABOND®

    Model Number: H-C118

    Application: Machinery, Roofing, Industry, Decoration, Construction, Building, ACP

    Thickness: 0.1mm - 2.0mm

    Width: 50 - 1300mm

    Alloy Or Not: Alloy

    Grade: 1000 Series, 3000 Series, 5000 Series, 8000 Series

    Surface Treatment: Coated

    Temper: O - H112

    Main grade: 1050 H24, 2024 T3, 5052 H32, 6061 T6, 7075 t6, 8011 O

    Main uses: Curtain wall, Aluminum composite board, car body

    More Processing: Mirrored polish, Brushed, Embossed

    Colors: White, Gold, Red, Blue, Black and others

    Coil weight: 1-3tons

    Coatings: PE, PVDF, HDPE

    PE Coating: Over 18 micron thick

    PVDF Coating: Over 25 micron thick

    Sample: Free samples

    Supply Ability: 25000 Metric Ton/ Per Month aluminum painted coil.

    Painted aluminum color coil packing:
    Standard seaworthy exporting carton.
    Wooden pallets.
    Waterproof paper and plastic craft coverage.
    Or as per customer's requirements.
    Load of container: 20ft container can load 20 tons, 40ft container can load 25 tons for your reference.

    Port: Shanghai, China

    Lead Time : 18-22 days


    Anti Scratch Coated Aluminium Coil 3mm Tickness Aluminum Sheet Roll


    ProductAlloyTemperThicknessWidth
    Pre-coated Aluminum Coil
    AA1050All tempers0.3-3.0mm30-1850mm
    AA106030-1850mm
    AA110030-1850mm
    AA300330-1850mm
    AA300430-1560mm
    AA300530-1560mm
    AA310430-1560mm
    AA310530-1560mm
    AA500530-1560mm
    AA505230-1560mm
    AA575430-1560mm
    AA606130-1560mm

    Anti Scratch Coated Aluminium Coil 3mm Tickness Aluminum Sheet Roll


    Products description: Pre-coated Aluminum Coil (CC And DC )

    1) Available alloy: 1050 1060 1100 3003 3004 3105 5005 5052 5251 5754 6061

    2) Painting type: PE and PVDF

    3) Guarantee time: PE 10-15 years, PVDF 20-25 YEARS

    4) Colors: all colors. Normally refer to RAL Color book or based on customer’s sample.

    5) Coil ID: 405MM, 505MM, 605MM

    6) Weight per package: Normally 500kg to 3000kg, customerised.

    7) Delivery time: 30 days

    8) Minimum order quantity: 5 tons per size.

    9) The term of payment: T/T, L/C at sight.

    10) Surface: color coated. We can provide blue/black and white/transparent PVC film to protect the surface.


    Anti Scratch Coated Aluminium Coil 3mm Tickness Aluminum Sheet Roll


    Specifications

    ShapeAluminum coils or sheets
    ColorRAL colors, like white, gold, red etc., and wood grain, stone pattern
    ProcessSingle or double coating, single or double sides coated etc.
    Width50-1300mm
    Thickness0.1mm - 2mm
    Coating MaterialPE, HDPE, PVDF,PVC
    PE ThicknessOver 18 micron
    PVDF ThicknessOver 25 micron
    Unit Weight1-3 tons per coil
    TechnologyHot rolling, cold rolling
    ProtectionPlastic film covering
    DeliveryAccording your quantity, about 15 days for 20tons, 20days for 35tons.
    MOQ5 tons
    SamplesFree
    UsageDecoration of curtain wall, car, boat, ACP, etc.

    Anti Scratch Coated Aluminium Coil 3mm Tickness Aluminum Sheet Roll


    Features

    1. Rustless.2. Eco-friendly.
    3. High definition.4. Vibrant colors.
    5. Super texture and feel.6. Excellent fire resistance.
    7. Excellent impact strength.8. Super weather resistance.
    9. Waterproof and easily clean.10. Good gloss and smoothness.
    11. Light weight and easy to process.12. Uniform and plenty colors of coating.
    13. Extremely durable scratch resistant surface.

    Anti Scratch Coated Aluminium Coil 3mm Tickness Aluminum Sheet Roll


    Technical Data of PE coating
    Test ItemTest Result
    Coating Film Thickness16μm (average 17μm)
    Gloss Tolerance1.5
    Pencil Hardness3H
    Coating Flexibility1T
    Impact Resistance50kg·cm
    No depainting, No crack
    Solvent ResistanceNo change
    Abrasion Resistance1000 times No change
    Boiling-water ResistanceNo change
    Acid ResistanceNo change

    Anti Scratch Coated Aluminium Coil 3mm Tickness Aluminum Sheet Roll


    Technical Data of PVDF coating
    Test ItemTest Result
    Coating Thickness26μm
    Gloss Tolerance38%
    Pencil Hardness2H
    Coating Flexibility2T
    Adhesive Force4B
    Abrasion Resistance55L/mil
    Impact Resistance>=100kg-cm
    Boiling-water ResistanceNo change
    Alkali ResistanceNo change
    Acid ResistanceNo change
    Solvent ResistanceNo change
    Humidity Resistance3000hrs no blister
    Salt-spray Resistance3000hrs no blister
    Color RetentionE=0.35
    Chalk ResistanceNo change
    Gloss Retention84.50%
    Surface Burning BehaviorClass: A

    Packaging

    1. Standard seaworthy exporting carton.

    2. Wooden pallets on the bottom.
    3. Waterproof plastic package.
    4. Packing paper cover.
    5. Or as required.
    Size: Detail will calculated when get your inquiry.


    Anti Scratch Coated Aluminium Coil 3mm Tickness Aluminum Sheet Roll


    Load of container: 20ft container can load 20 tons, 40ft container can load 25 tons for your reference.

    20GP, 5.899 x 2.352 x 2.393m, 33CBM

    40GP, 12.032 x 2.352 x 2.393m, 67CBM


    Advantages:

    OEM is acceptable.

    Customized design is available.
    Production capacity: 25000 tons per month.
    Fast delivery: Complete production lines ensure a short production time.
    Processing ability: mill finished, coated, embossed, printed, colored etc. We offer overall treatment processing.
    Quality assurance: Adopt precise quality inspection systems.

    All products are available in many different thickness, widths, alloys and tempers to meet your specifications.


    Services

    1. Quick response: Reply in 5 minutes while working.
    2. Professional solution: Experienced team to solve and answer your inquiry.
    3. Full tracking: Update the processes and send photos while producing, packing and loading.
    4. Abundant strength: Strong processing and warehousing service.
    5. Strict quality control: Precise quality inspection equipment to ensure high quality.
    6. Fast delivery: Ensured by large production capacity and supply ability.
    7. After sale service: Follow up the shipping, receiving and working.


    Applications

    1. For constructional exterior curtain walls, aluminum composite panel.

    2. Widely used in exhibition, stores, offices, banks, hotels, restaurants and apartments.

    3. Decorative renovation for storey-added old buildings, facades, roofing.

    4. Indoors decoration for interior walls, ceilings, bathrooms, kitchens, balconies and subway.

    5. Advertisement board, display platforms, billboards and signboards.

    6. Wallboard and ceilings for tunnels.

    7. Raw materials in industrial purpose.

    8. Material used for vehicle bodies, yachts and boat.


    Anti Scratch Coated Aluminium Coil 3mm Tickness Aluminum Sheet Roll


    FAQ

    1. What is the basic information needed from customer?

    Normally use, size, quantity.

    Professionally alloy number (grade), temper, size, quantity.


    2. What is your product range?

    We supply aluminum alloy material products.

    Like Aluminum coil, Aluminum sheet, Aluminum circle,

    And more like Brush Aluminum, Embossed Aluminum, Colored Aluminum, Mirror Aluminum.


    3. Do you provide a sample for my test?

    We offer free samples.
