Excellent quality, perfect service, strive to be the industry leader!
5 Years
| Ask Lasest Price | |
| Brand Name : | Huabond |
| Model Number : | H-C108 |
| Certification : | SGS, FDA, RoHS, ISO |
| Payment Terms : | T/T, L/C |
| Delivery Time : | 18-22 days |

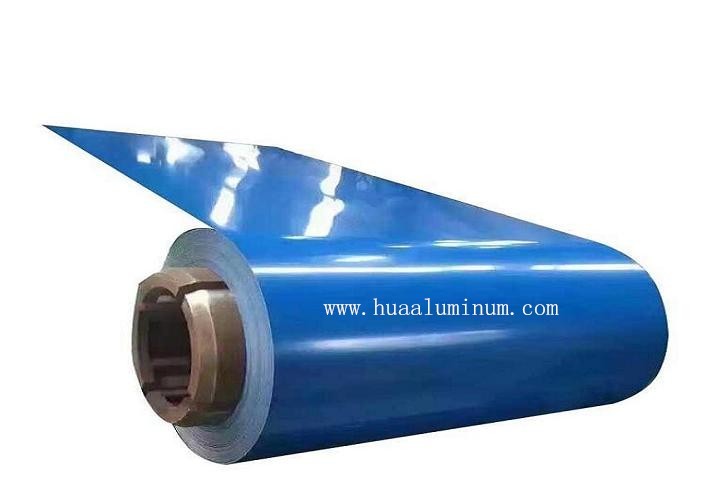

Color coating aluminum coil
Product Description
| Item | Coating 1050 H14 1060 H24 Rolled Aluminum Coil | |
| Standard | GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc | |
| Material | 1050,1060,2A14,3003,3103,4032,5454,5754,5056,5082,5086,6061,6060,6082,7075,7475 | |
| Size | Thickness | 0.5-200mm |
| Width | 100-2000mm | |
| Length | 2000mm, 2440mm, 6000mm,or as required. | |
| Quality control | Mill Test Certification is supplied with shipment, third Part Inspection is acceptable. | |
| Surface | Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc. | |
| Trade conditions | ||
| Trade terms | Price term | FOB, CNF, CFR, etc. |
| Payment Term | TT, L/C, etc. | |
| MOQ | 2000Kg | |
| Delivery time | 1. The products in stock will delivery immediately received the payment. 2. According to the order quantity, prompt delivery. | |
| Export to | Ireland,Singapore,Indonesia,Ukraine,Spain,Canada,USA,Brazil,Thailand,Korea,Iran,India,Egypt, Kuwait, Oman, Viet Nam, South Africa, Dubai, Russia, England, Holland, etc. | |
| Package | Standard export package, such as wooden box or as required. | |
| Application | Further making utensil. Solar reflective film The appearance of the building | |
| Container size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM | |
| Contact | If you have any question, please feel free to contact me. | |
| Alloy Series | AA1100, AA3003, AA3004, AA3005, AA3105, AA5052 |
| Thickness | 0.2-1.5mm (standard 0.5-1.0mm) |
| Width Size | 267mm, 285mm, 300mm, 405mm, 448mm x Coil, as per request |
| Top Paint | PE, HDPE, PVDF |
| Back Paint | Primer or mill finish |
| Color Range | RAL color, Wooden, as per request (Typical color: White, Ivory, Coffee, Gray, Black ) |
| Top Coating Thickness | PE ≥18μm, PVDF ≥25μm, as per request |
| Back Coating Thickness | ≥7μm, as per request |
| Gloss | 10~90%, (EN ISO-2813:1994) |
| Pencil Hardness | ≥2H |
| Impact Resistance | No peeling or cracking(50 kg/cm,ASTMD-2794:1993) |
| Flexibility (T-bend) | ≤2T |
| E-Cupping Test | 6mm |
| MEK resistance | More than 100 times |
| Color Difference | △E＜0.5 |
| Paint Company | PPG Valspar Becker KCC Nippon |
| Surface Protection | PE protective film, Could be custom-made |
| Coil Interior Diameter | 405mm,505mm normally; Could be custom-made |
| Coil Weight | 2~3 Tons/ coil, as per request |
| Application | (1)Roofing Maintenance System-Curtain Wall (2)Ceiling System (3)Aluminum Downspouts Coil (4)Home Appliance Application -Embossed Lining Aluminum Sheet (5)Composite Panel (6)Food Package-Aluminum Easy Open Cans and Lids (7)Advertisement-Sublimation Aluminum Sheet |
| Item | Color Coating Aluminum Coil/sheet |
| Coating | PE, HDPE, PVDF, FEVE, NANO |
| Coating Thickness | 16~35um, Could be custom-made |
| Aluminum Thickness | 0.21mm ~ 1.5mm normally; Could be custom-made |
| Width | For Coil: 15mm ~ 2000mm normally; Could be custom-made For Sheet: 20mm ~ 2000mm; Could be custom-made |
| Alloy Series | A1100, AA3003, AA3004, AA3105, AA5052, AA5182,AA8011 etc. |
| Surface Protection | PE protective film, Could be custom-made |
| Coil Interior Diameter | 405mm,505mm normally; Could be custom-made |
| Gloss | 10~90%, (EN ISO-2813:1994) |
| Coating Hardness (Pencil resistance) | More than 2H |
| Impact Resistance | No peeling or cracking(50 kg/cm,ASTMD-2794:1993) |
| Flexibility(T-bend) | 2T |
| MEK resistance | More than 100 |
| Colors | RAL colors code, Could be custom-made |
| Surface | Embossed, Mill finish, Coated |
| Application | (1)Roofing Maintenance System-Curtain Wall (2)Ceiling System (3)Aluminum Downspouts Coil (4)Home Appliance Application -Embossed Lining Aluminum Sheet (5)Composite Panel (6)Food Package-Aluminum Easy Open Cans and Lids (7)Advertisement-Sublimation Aluminum Coil / Sheet |
Advantages
Professional: we focus on the coating industry for 27 years, through a series of full-range system certification, we import 6 fully automated high-speed production lines from Germany, and use the international advanced three times and two times baking process. From paint to coated aluminum coils and sheets to protective film, we can offer good quality.
Quality: All production and technical workers are professional engineer who trained our group, product inspection: 7 procedures, guarantee high quality.
Strength: Huabond stand to the concept of “zero defect” and “responsible for customer”.
Quality management in strict accordance with the standards of production.
FAQ
Q1. How do you control quality?
A1: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q2. What are the advantages of your company?
A2: We have many professionals, technical personnel, more competitive prices and best after-sales service than other stainless steel companies.
Q3. How many countries you already exported?
A3: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Iran, Turkey, Jordan,
Q4. What is your terms of payment?
A4. T/T 30% deposit in advance; the balance paid should be paid
according to the copy of B/L.
Q5. How about your delivery time?
A5. Generally, it will take 18to 22days after receiving your
advance payment. The specific delivery time depends on the items
and the quantity of your order.
Q6. Can you produce according to the samples?
A6. Yes, we can produce by your samples or technical drawings.
Q7. Can you provide sample ?
A7. Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
|
|
