    PVDF Coated Aluminum Composite Wall Panels , 1.22x2.44m ACP Sheet Fireproof

    Ask Lasest Price
    Brand Name : Huabond
    Model Number : H-A904
    Certification : CE, SGS, PSB
    Payment Terms : T/T, L/C
    Delivery Time : 18-22 days
    • Product Details
    • Company Profile

    PVDF Coated Aluminum Composite Wall Panels , 1.22x2.44m ACP Sheet Fireproof

    Aluminum Composite Fireproof Panel


    Quick Details


    Place of Origin: Shanghai, China

    Brand Name: Huabond

    Model Number: H-A904

    Usage: Outdoor

    Function: Fireproof

    Surface Treatment: PVDF Coated

    Size: 1220*2440mm

    Supply Ability: 400000 Square Meter/ Per Month

    Packaging Details: in bulk or according to request

    Port: Shanghai


    PVDF Coated Aluminum Composite Wall Panels , 1.22x2.44m ACP Sheet Fireproof


    4mm 0.3mm/0.4mm B1 Grade Fireproof PVDF Painting Unbroken Core ACP Aluminum Composite Panel


    Raw material
    High strength aluminum alloy A1100, AA3003, AA5052

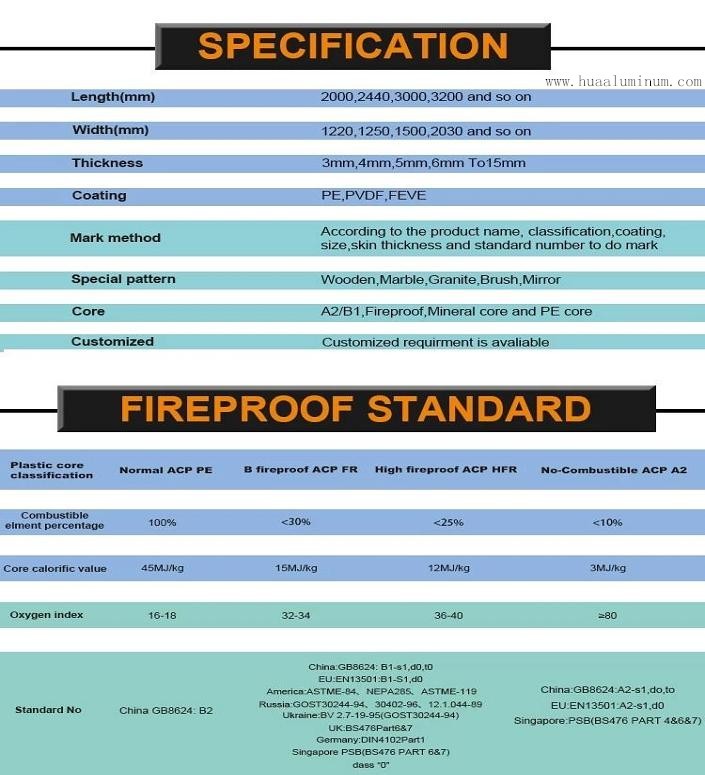

    Panel specifications and dimension:

    Panel Thickness:3mm ( 0.12”),4mm ( 0.16”),5mm ( 0.2”),6mm ( 0.24”)
    Aluminum Skin Thickness:0.3mm (0.012”) to 0.5mm (0.02”)
    Surface Coating;PVDF coating
    Panel Width Available:Width: 850mm to 2000mm,( 34” to 80” )
    Panel Length Available:Panel length as required, max 5800 mm.
    Standard Panel Width:1220 mm (48.8”), 1250 mm (50”), 1500 mm (60”), 2000 mm (80”)

    Recommended dimension:

    1220mm (48”)*2440mm(96”)*4mm ( 0.16”)*0.5mm (0.2”)
    1500mm (59”)*3050mm(120”)*4mm ( 0.16”)*0.5mm (0.2”)

    PVDF Coated Aluminum Composite Wall Panels , 1.22x2.44m ACP Sheet FireproofPVDF Coated Aluminum Composite Wall Panels , 1.22x2.44m ACP Sheet Fireproof


    Dimension Tolerance:

    Thickness(mm):±0.2mm
    Width(mm):±2mm
    Length(mm):±2mm
    Diagonal(mm):±3mm

    PVDF Coated Aluminum Composite Wall Panels , 1.22x2.44m ACP Sheet Fireproof


    Features:

    A) Light weight, flat surface and high strength
    B) Excellent heat insulation, sound insulation, fire-resistance,
    Acid-resistance, alkali-resistance, weather-proof
    C) Various uniform colors
    D) Can be easily processed and quickly installed
    E) Bright, elegant and magnificent, fit for various designs
    F) colors can be easily maintained


    Application:
    A) Can be widely used in galleries, exhibitions, saloons, stores, offices, banks, hotels, restaurants, and apartments .
    B) Other kinds of buildings: as ideal decorative materials for the outer-wall and inner-wall of buildings.
    C) Kitchen cabinets, billboards, signboards, tunnels and subway interiors.
    D) Ceilings, eaves, balconies, partitions and interior decorations.
    E) Telephone booths, vehicle bodies, and industrial usages.
    F) Re-decoration of the old building


    Quality:
    A)Under natural climate,film coating will be no flake.no rubbles,no vestige and no pulverization.
    B)Under common environment.no flake.no rubbles.
    C)Under common temperatures and radiation, no color difference.
    D)According to international test standard,all the tested items are satisfied with high-class.
    E)Our products with PVDF coating which produced under GB/T17748-1999 is with 70% PVDF.and under common environment,we can guarantee 15~20 years;and for FR products,it is good at fireproof,and the FR grade is B1(according to the standard Q B8624).


    PVDF Coated Aluminum Composite Wall Panels , 1.22x2.44m ACP Sheet FireproofPVDF Coated Aluminum Composite Wall Panels , 1.22x2.44m ACP Sheet Fireproof
