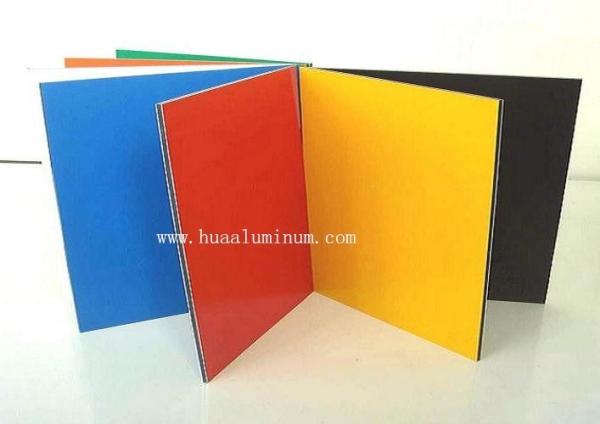

ACP panel

Quick Details

Place of Origin: Hunan, China
Brand Name: HUABOND
Model Number: H-A115
Usage: Outdoor
Function: Antibacterial
Surface Treatment: Mirror, PE Coated, PVDF Coated
Color: silver, have more 200 colors
Packaging Details: wooden case or bulk
Port: Shanghai, China
Lead Time : 18-22days

Product description
Aluminum cladding for wall decoration.
PE/PVDF Aluminum Composite Materials-ACM, Excellence in building.
Materials:
1. Front side: aluminum alloy sheet coated with fluorocarbon resin (PVDF) or polyester Resin (PE)
2. Core: more broken-resistant polyethylene or fire-resistant polyethylene (PE)
3. Rear side: aluminum alloy sheet (or coated with polyester resin)

Dimensions:
Panel thickness:
4. Standard: 3mm, 4mm
5. Others: 2mm up to 16mm







Aluminum skin thickness:
0.50 x 0.50mm
0.45 x 0.45mm
0.40 x 0.40mm
0.35 x 0.35mm
0.3 x 0.3mm
0.21 x 0.21mm
0.18 x 0.18mm
0.15 x 0.15mm
0.12 x 0.12mm
0.10 x 0.10mm

Width:
Standard width: 1,220mm
Maximum width: 2,030mm

Length:
Standard length 2,440mm
Maximum length: 5,800mm



Features:
KYNAR 500 fluorocarbon resin (PVDF) top coat.
Adoption of high- purified aluminum sheet from Southwest Aluminum Group
Surface treatment technologies from Heckle, Germany

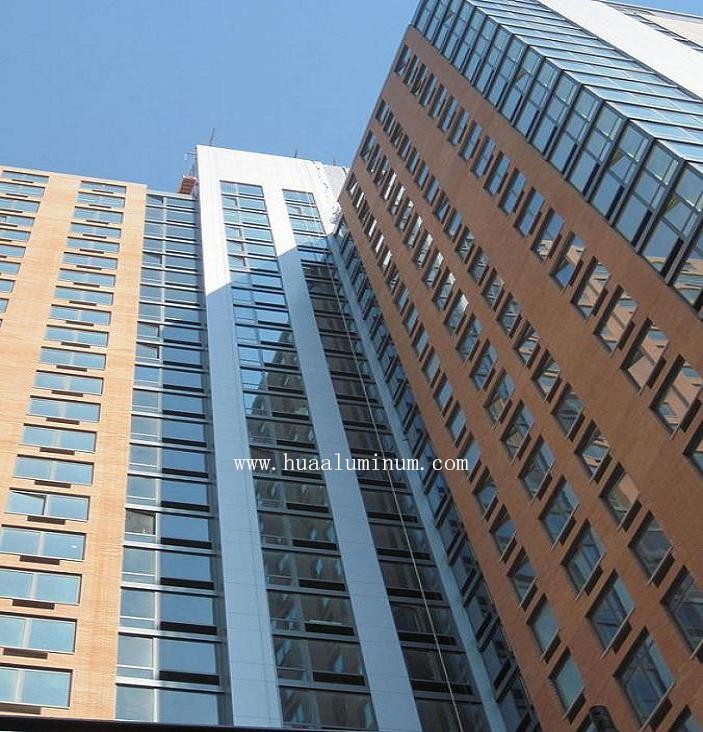

Optimum for exterior decoration of skyscrapers
Super peeling strength
Lightweight, flat surface, Excellent in heat-insulation, sound-insulation, fire-resistance,
acid-resistance, alkali-resistance, weather-resistant and non-resonance
Can be easily processed and quickly installed
Unique colors can be easily maintained

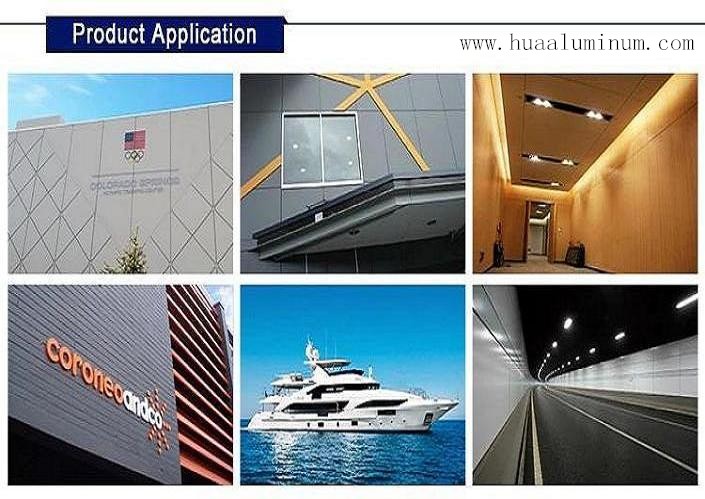

Hunan Huabond Technologies Co., Ltd. was established in 1994. It is a high-tech enterprise specializing in R&D, manufacturing and sales of metal materials. It is located in the Economic and Technological Development Zone of Changsha City, Hunan Province. Huabond is committed to innovation and strives to achieve full coverage with aluminum, copper, stainless steel and other metal materials to meet customers' one-stop procurement needs. The company's own brand HUABOND®, the company's main products are color coated metal coils, fluorocarbon sprayed aluminum solid panel, industrial metal composite panels, stainless steel tubes, ultra-wide and ultra-thick aluminum composite panels and honeycomb panels. Products are widely used in curtain wall interior and exterior decorative panels, roof maintenance system materials, elevator car panels, car panels, advertising panels, home appliances, solar energy and other fields.

HUABOND® is one of the drafters for National Standard of Aluminum Composite Panel & Solid Aluminum Sheet, an establishment member of National Aluminum Composite Panel Association, the executive vice chairman of the Standing Committee ever since, and the first CTC certificated company qualified through the National Building Materials Center.

With up-to-date equipment of 4 Coating Lines, 2 Film Lamination Lines, 4 Slitting Lines, 5 Cutting Lines and Advanced Solid Aluminum Sheet Production Line, and annual capacity of 300,000 tons coated aluminum coils/sheets, 120,000 tons coated steel coils/sheets, 60,000 tons of film laminated metal coils/sheets, 1,000,000 m² solid aluminum sheets, 600,000 m² aluminum honeycomb sheets, and 4,000,000 m² Aluminum composite panels, HUABOND® always takes a leading position on Scale, Variety, Technology & Comprehensive Strength during the industry in China and even in Asia.

Hunan Huabond Technologies Co., Ltd. is committed to creating high-quality modern architectural art space for domestic and foreign customers with the corporate goal of "excellent quality, perfect service, and striving to be the industry leader", upholding professionalism, pursuing excellent quality. The company adheres to the business philosophy of "credibility-based, quality first, hard work and prosperity", combined with the implementation of the national "Made in China 2025" plan and the "Belt and Road" strategy, adheres to a high starting point, high quality, and walks with all partners all the way , Actively improve, seek change in stability, and achieve global consultation, co-connection, co-creation, and win-win.
