Aluminum metal panel

Basic Information

Trademark: Huabond

Model NO.: H-A809

Number of Layers: Single

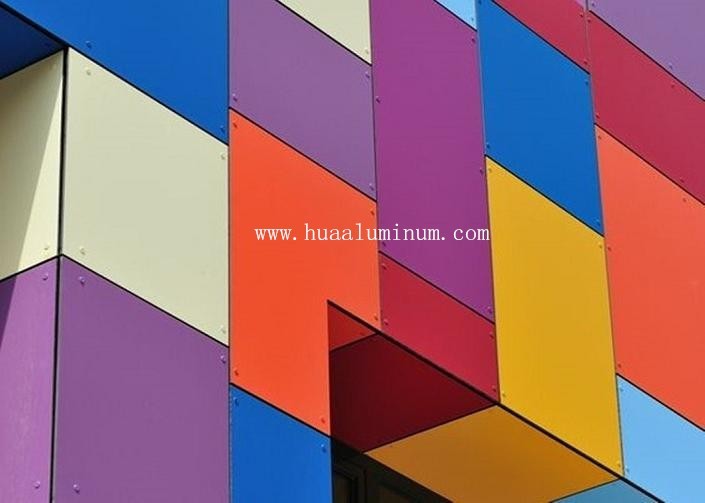

Metal Curtain Wall Kind: Aluminum Panel Curtain Wall

Shape: Standard Plane

Aluminum Material: 1100/30035005/6061

Thickness: 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm etc.

Warranty: More Than 10 Years

Color: RAL Color, Wood Grain, Stone Grain, Mirror, Other

Specification: Can Be Customized

Usage: Exterior Wall, Interior Wall

Special Function: Photovoltaic Curtain Wall, Ventilation Curtain Wall, Intelligent Curtain Wall

Surface Management: Powder Coating/PVDF/Anodising

Polished Aluminum Profile: Mechanical Polishing

Transport Package: Pallet/Wood Box

Origin: Hunan, China

Material:
A) Front : aluminum alloy sheet coated fluorocarbon resin (PVDF) with Nano lacquer.
B) Core: nontoxic low density polyethylene.
C) Back: aluminum alloy sheet coated with polyester resin painting.
D) Surface coating thickness: 32μ±1μ.
E) Aluminum alloy: 3003 H24.
F) Sheet thickness: 0.3mm,0.4mm,0.5mm .

Dimensions:
A) Thickness: 3mm,4mm,6mm,8mm,10mm.
B) Width: 1220mm,1250mm,1500mm,1570mm,1800mm,2000mm(max).
C) Length: 2440mm,3050mm,3200mm( max:6000mm).
D) Weight: 5.5kg/sqm based on 0.5/4mm thickness.
E) Standard size:1220*2440mm.
F) Qty/20'fcl:4mm/2380sqm; 3mm/2977sqm.
G) Non-standard size are available according to requirement.

Standard:
A) West Europe standard ( Germany DIN Standard).
B) The EAST Europe standard ( Russian standard ).
C) The common wealth standard (U.K BS Standard ).
D) The North America ASTM standard.

HUABOND® ACP compared with different products( Lightness / Rigidity ):
The composite structure of HUABOND® results in an impressive strength-to-weight ratio, even when comparing large panel sizes. Despite its low weight, which makes HUABOND® easy to transport and handle in the factory and on site, its rigidity and high strength make the panels keep their shape and remain flat, even when exposed to extreme temperature changes. Comparison of thickness and weight of panels with equal rigidity.

5) HUABOND® ACP compared with solid aluminum:
Required thickness and actual weights of panels with same rigidity

6) HUABOND® ACP Physical Properties for Panel:

Hunan Huabond Technologies Co., Ltd. was established in 1994. It is a high-tech enterprise specializing in R&D, manufacturing and sales of metal materials. It is located in the Economic and Technological Development Zone of Changsha City, Hunan Province. Huabond is committed to innovation and strives to achieve full coverage with aluminum, copper, stainless steel and other metal materials to meet customers' one-stop procurement needs. The company's own brand HUABOND®, the company's main products are color coated metal coils, fluorocarbon sprayed aluminum solid panel, industrial metal composite panels, stainless steel tubes, ultra-wide and ultra-thick aluminum composite panels and honeycomb panels. Products are widely used in curtain wall interior and exterior decorative panels, roof maintenance system materials, elevator car panels, car panels, advertising panels, home appliances, solar energy and other fields.

HUABOND® is one of the drafters for National Standard of Aluminum Composite Panel & Solid Aluminum Sheet, an establishment member of National Aluminum Composite Panel Association, the executive vice chairman of the Standing Committee ever since, and the first CTC certificated company qualified through the National Building Materials Center.

With up-to-date equipment of 4 Coating Lines, 2 Film Lamination Lines, 4 Slitting Lines, 5 Cutting Lines and Advanced Solid Aluminum Sheet Production Line, and annual capacity of 300,000 tons coated aluminum coils/sheets, 120,000 tons coated steel coils/sheets, 60,000 tons of film laminated metal coils/sheets, 1,000,000 m² solid aluminum sheets, 600,000 m² aluminum honeycomb sheets, and 4,000,000 m² Aluminum composite panels, HUABOND® always takes a leading position on Scale, Variety, Technology & Comprehensive Strength during the industry in China and even in Asia.

Hunan Huabond Technologies Co., Ltd. is committed to creating high-quality modern architectural art space for domestic and foreign customers with the corporate goal of "excellent quality, perfect service, and striving to be the industry leader", upholding professionalism, pursuing excellent quality. The company adheres to the business philosophy of "credibility-based, quality first, hard work and prosperity", combined with the implementation of the national "Made in China 2025" plan and the "Belt and Road" strategy, adheres to a high starting point, high quality, and walks with all partners all the way , Actively improve, seek change in stability, and achieve global consultation, co-connection, co-creation, and win-win.
